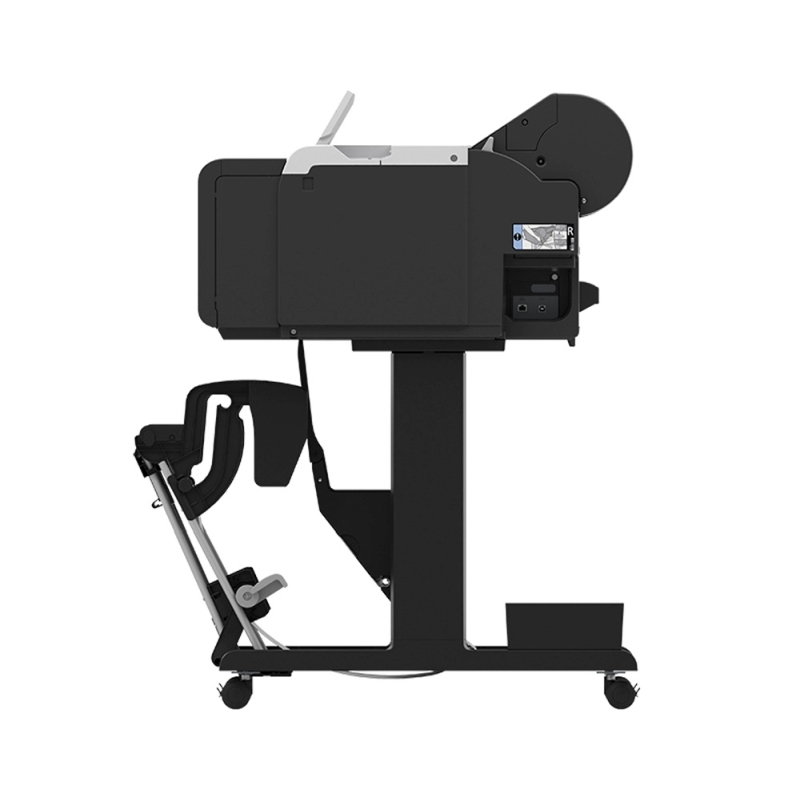

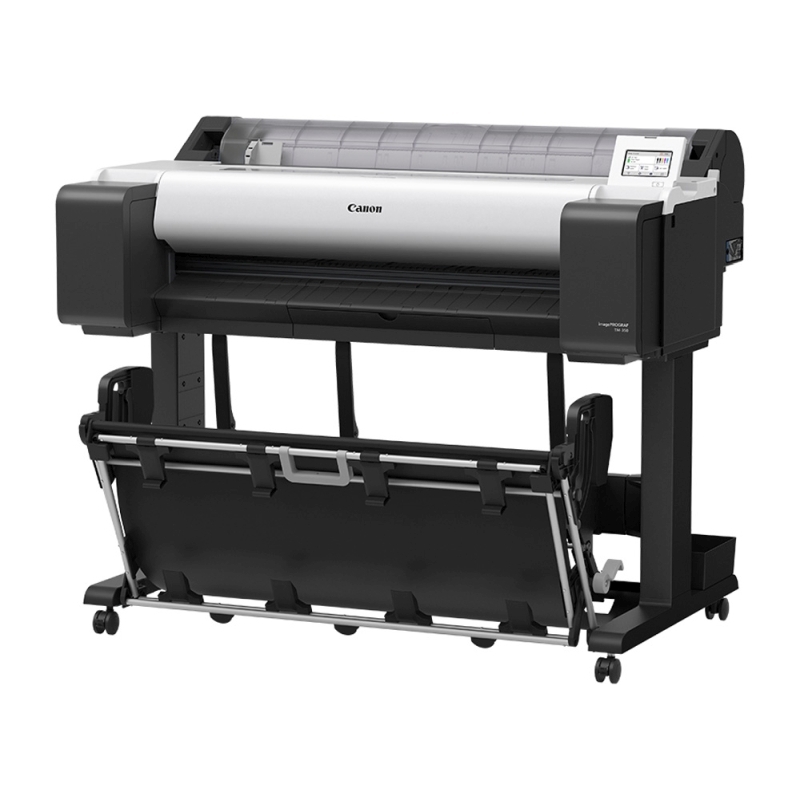

Canon imagePROGRAF TM-350 Colour Large Format Technical Printer with Stand
Description
The Canon imagePROGRAF TM-350 is a 36-inch colour large format technical printer designed for architectural, engineering, construction, and CAD/GIS environments. Built to deliver precise line drawings and vibrant graphics with fast print speeds up to 17 seconds per A1 page, it offers a reliable production solution for technical professionals and printing environments.
- 36-inch maximum print width supporting roll and cut-sheet media up to A0 and ARCH E sizes.
- 5-colour all-pigment ink system (Matte Black, Black, Cyan, Magenta, Yellow) for sharp CAD lines and weather-resistant prints.
- High-resolution printing up to 2400 x 1200 dpi powered by the PF-06 print head.
- Hi-Speed USB, Gigabit Ethernet, and Wireless LAN connectivity options.
- Uses Canon PFI-120 (130ml), PFI-121 (130ml), PFI-320 (300ml), and PFI-321 (300ml) ink tanks.
- Includes starter ink tanks (MBK 130ml; C, M, Y, BK 90ml each) for initial setup.
- Includes printer stand and open basket for convenient paper handling.
- Compatible with Canon PRINT Inkjet/SELPHY app and PosterArtist Web software utilities.
For manufacturer information, see the Canon imagePROGRAF TM-350 on Canon Australia.
Orders for the Canon imagePROGRAF TM-350 large format technical printer are fulfilled through distribution centres in Melbourne, Sydney, Brisbane, Adelaide and Perth for prompt delivery across Australia.
Disclaimer: We work hard to keep product details accurate and current, though occasional errors or omissions may occur. Specifications and features can also change without notice. Before purchasing or using a product, we encourage you to check the packaging or product listing, especially for materials or compatibility, to ensure it meets your needs.
Basic Specifications
| Brand | Canon |
|---|---|
| Model | imagePROGRAF TM-350 |
| Product Type | Colour Large Format Technical Printer |
| Maximum Print Width | 36 Inch / 914 mm (A0) |
| Stand Included | Yes (Stand and Basket included in box) |
Print Technology
| Print Head | PF-06 |
|---|---|
| Number of Nozzles | 15,360 nozzles (MBK: 5,120 nozzles; BK/C/M/Y: 2,560 nozzles each) |
| Droplet Size | Minimum 5pl per colour |
| Print Resolution | 2400 x 1200 dpi |
| Print Speed | 17 seconds per A1 page |
| Ink Type | 5-Colour Pigment Ink (Cyan, Magenta, Yellow, Black, Matte Black) |
| Print Language | SGRaster, HP-GL/2, HP RTL, JPEG, CALS G4 |
Media Handling
| Media Feed | Roll Feed: One Roll, Top-loading, Front Output; Cut Sheet: Top-loading, Front Output |
|---|---|
| Roll Paper Sizes | ISO: A3, A3+, A2, A2+, A1, A0; JIS: B4, B3, B2, B1; ARCH: 12in, 18in, 24in, 30in, 36in; Others: 8in-34in, 300mm-800mm |
| Cut Sheet Sizes | ISO: A4, A3, A3+, A2, B4, B3, B2, B1; DIN: C4, C3, C2, C1, C0; ANSI: 8.5x11in to 34x44in; ARCH: 9x12in to 36x48in; Photo / Poster sizes |
| Media Thickness | 0.07 - 0.8 mm |
| Media Core Sizes | 2 inch or 3 inch Core |
| Maximum Roll Outer Diameter | 150 mm or less |
| Media Cutter | Automatic horizontal cutting (Rotary Cutter) |
Connectivity & Network
| USB Interface | Hi-Speed USB: Full Speed (12 Mbit/sec), High Speed (480 Mbit/sec) |
|---|---|
| Ethernet | Built-in IEEE802.3ab (1000BASE-T) / IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T) |
| Wireless LAN | IEEE 802.11 b/g/n |
Memory & Software
| Printer RAM | 2 GB |
|---|---|
| Printing Software & Utilities | Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver, Media Configuration Tool, Canon PRINT Inkjet/SELPHY, PosterArtist Web / PIXMA Cloud Link |
| Supported Operating Systems | Windows 11, Windows 10, Windows 8.1, Windows 7, Windows Server 2022/2019/2016/2012/2008, macOS 10.15.7 - macOS 13 |
Consumables
| Ink Tanks | PFI-120 (130ml) / PFI-320 (300ml) Cyan, Yellow, Black, Matte Black; PFI-121 (130ml) / PFI-321 (300ml) Magenta |
|---|---|
| Includes Ink/Toner Consumables | Yes |
| Ink/Toner Models Included | Matte Black (130ml), Cyan (90ml), Magenta (90ml), Yellow (90ml), Black (90ml) starter ink tanks |
| Maintenance Cartridge | MC-31 |
| Cutter Blade | CT-08 |
| Optional Roll Holder | RH2-35 |
Dimensions & Weight
| Dimensions (W x D x H) | 1285 x 885 x 1060 mm (with stand basket opened) |
|---|---|
| Printer Weight | 63.8 kg (with stand) |
| Package Dimensions | 1462 x 1122 x 801 mm (with pallet) |
| Package Weight | 113 kg |
Power & Environment
| Power Supply | AC 100-240V (50-60 Hz) |
|---|---|
| Power Consumption | Approx 65W (Operation), 1.6W (Standby), 0.1W (Power Off) |
| Operational Environment | Temperature: 15-30°C; Relative Humidity: 10-80% (Non-condensing) |
