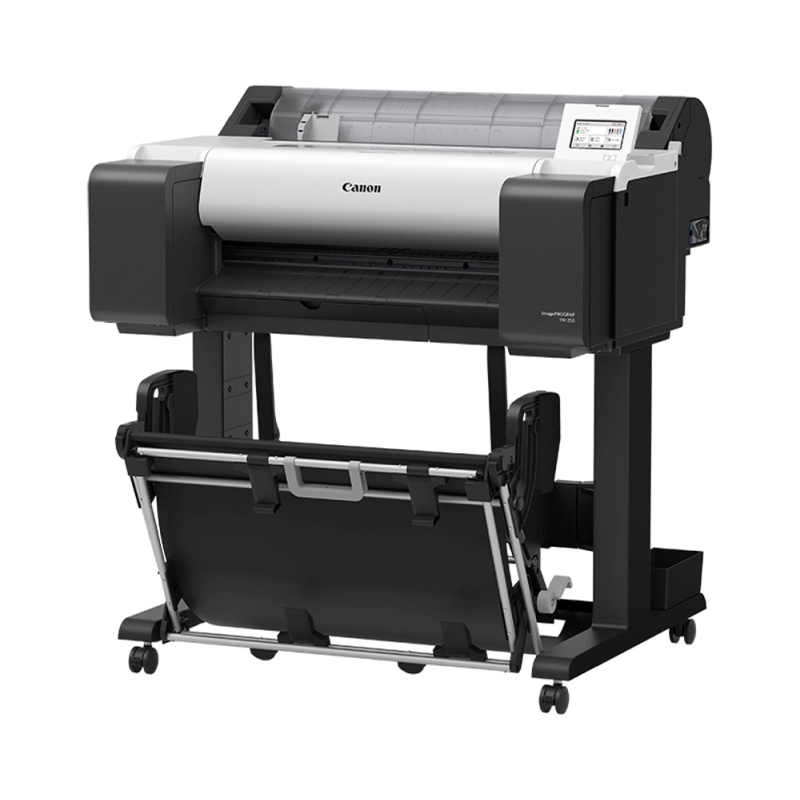

Canon imagePROGRAF TM-250 24" Large Format Technical Printer with Stand

Brand: Canon

Description

The Canon imagePROGRAF TM-250 is a 24-inch single-function large-format technical inkjet printer engineered for high-precision CAD, GIS, and poster printing. Delivering A1 prints in as fast as 20 seconds with crisp 2400 x 1200 dpi resolution, it utilizes a 5-colour LUCIA TD all-pigment ink system to ensure vibrant colour and water-resistant lines. Designed for architecture, engineering, construction (AEC), and corporate office environments, it provides sharp detail and consistent output on both coated and uncoated media.

Prints up to 24 inches (610 mm) wide, delivering A1 technical prints in 20 seconds.
High-resolution 2400 x 1200 dpi output powered by a 5-colour all-pigment ink system (Cyan, Magenta, Yellow, Black, Matte Black).
Flexible media feeding for roll paper and cut sheets with automatic rotary horizontal cutter.
Comprehensive connectivity including Hi-Speed USB, Gigabit Ethernet, and Wi-Fi (IEEE 802.11 b/g/n).
Uses Canon PFI-120 (130 ml) or high-yield PFI-320 (300 ml) ink tanks (PFI-121 / PFI-321 for Magenta).
Includes setup starter ink tanks (130 ml Matte Black, 90 ml Black/Cyan/Magenta/Yellow).
Supplied complete with printer stand and integrated catch basket.
Supports Canon PRINT Inkjet/SELPHY app, Direct Print Plus, and PosterArtist Web for streamlined printing workflows.

For manufacturer information, see the Canon imagePROGRAF TM-250 on Canon Australia.

For customers across Australia, Canon imagePROGRAF TM-250 large format printer orders are fulfilled through distribution centres in Melbourne, Sydney, Brisbane, Adelaide and Perth.

Disclaimer: We work hard to keep product details accurate and current, though occasional errors or omissions may occur. Specifications and features can also change without notice. Before purchasing or using a product, we encourage you to check the packaging or product listing, especially for materials or compatibility, to ensure it meets your needs.

Basic Specifications

Brand	Canon
Model	imagePROGRAF TM-250
Product Type	24-inch Colour Large Format Technical Printer
Functions	Print
Stand Included	Yes (Printer Stand with Catch Basket)

Print Technology

Print Head	PF-06
Number of Nozzles	MBK: 5,120 nozzles; BK, C, M, Y: 2,560 nozzles each
Droplet Size	Minimum 5 pl per colour
Ink Type	5-Colour LUCIA TD Pigment Ink (Cyan, Magenta, Yellow, Black, Matte Black)
Print Resolution	2400 x 1200 dpi
Print Speed	Fastest mode: 20 seconds per A1 drawing
Print Languages	SGRaster, HP-GL/2, HP RTL, JPEG, CALS G4

Media Handling

Maximum Print Width	24 inches (610 mm)
Media Feed	Roll Feed: One Roll, Top-loading, Front Output; Cut Sheet: Top-loading, Front Output
Roll Paper Sizes	ISO A3, A3+, A2, A2+, A1; JIS B4, B3, B2; ARCH 12in, 18in, 24in; Custom widths 203.2 mm to 610 mm
Cut Sheet Sizes	ISO A4, A3, A3+, A2, A1; ANSI 8.5x11in to 22x34in; ARCH 9x12in to 24x36in
Media Thickness	0.07 mm to 0.8 mm
Media Core Size	2-inch or 3-inch core support
Maximum Roll Outer Diameter	150 mm or less
Media Cutter	Automatic horizontal rotary cutter

Connectivity

USB Interface	Hi-Speed USB (Full Speed / High Speed / Bulk transfer)
Wired LAN	Gigabit Ethernet IEEE 802.3ab (1000BASE-T) / 100BASE-TX / 10BASE-T
Wireless LAN	IEEE 802.11 b/g/n
System Memory	2 GB RAM

Software & Apps

Included Software	Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver, Media Configuration Tool, PosterArtist Web / PIXMA Cloud Link
Mobile Applications	Canon PRINT Inkjet/SELPHY app

Consumables

Ink Tanks	PFI-120 (130 ml) / PFI-320 (300 ml) Cyan, Yellow, Black, Matte Black; PFI-121 (130 ml) / PFI-321 (300 ml) Magenta
Maintenance Cartridge	MC-31
Cutter Blade	CT-08
Optional Roll Holder	RH2-28
Includes Ink/Toner Consumables	Yes
Ink/Toner Models Included	Matte Black (130 ml), Cyan, Magenta, Yellow, Black (90 ml each) starter tanks

Dimensions & Weight

Dimensions (W x D x H)	978 x 885 x 1060 mm (Main unit with Stand & Basket Opened)
Weight	54.5 kg (with Stand)
Package Dimensions (W x D x H)	1152 x 913 x 679 mm (Printer with pallet)
Package Weight	73 kg (Printer package), 22 kg (Stand package)

Power & Operating Environment

Power Supply	AC 100-240 V (50-60 Hz)
Power Consumption	Operation: Approx. 62 W; Standby: Approx. 1.6 W; Power Off: Approx. 0.1 W
Operating Temperature	15°C - 30°C
Operating Humidity	10% - 80% RH (non-condensing)

Supported Operating Systems

Windows	Windows 11, Windows 10, Windows 8.1, Windows 7, Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2
macOS	macOS Catalina 10.15.7 to macOS Ventura 13
