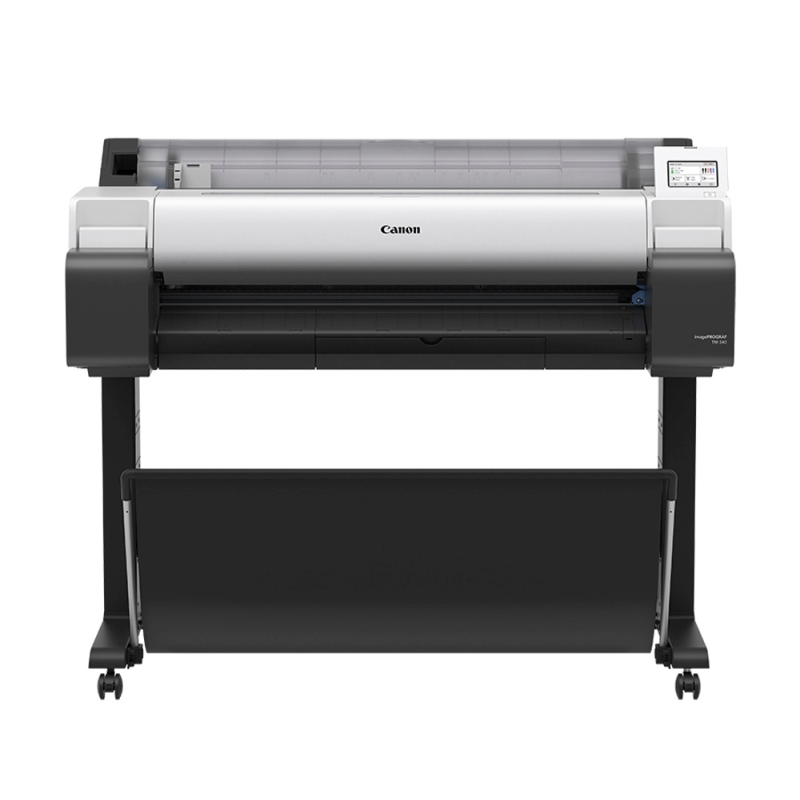

Canon imagePROGRAF TM-340 Large Format Technical Printer with Stand
Description
The Canon imagePROGRAF TM-340 is a 36-inch (914mm) large format technical inkjet printer supplied complete with a floor stand and catch basket. Engineered for architectural, engineering, CAD, and GIS workflows, it produces high-precision line drawings and vibrant technical posters with outstanding clarity. Powered by a 5-colour all-pigment ink system and 2GB of onboard memory, the TM-340 prints an A1 technical sheet in as fast as 21 seconds.
- 36-inch maximum print width supporting roll feed and cut sheet media from 0.07mm to 0.8mm thickness.
- Fast production speeds reaching up to 21 seconds per A1 page for high-volume technical printing.
- 2400 x 1200 dpi print resolution paired with the PF-06 print head for fine line accuracy and crisp text.
- 5-colour LUCIA TD pigment ink set (MBK, BK, C, M, Y) providing water-resistant, durable prints on plain paper.
- Uses Canon PFI-030 (55ml Cyan, Yellow, Black, Matte Black) and PFI-031 (55ml Magenta) ink tanks.
- Includes starter ink tanks in the box (80ml MBK, 55ml C, M, Y, BK) for setup and initial production.
- Versatile interface options including Gigabit Ethernet, Wi-Fi (802.11 b/g/n), and Hi-Speed USB connections.
- Integrated automatic horizontal rotary cutter for smooth, precise sheet separation.
- Includes sturdy official printer stand with open catch basket for easy media handling.
Orders for the Canon imagePROGRAF TM-340 large format technical printer are fulfilled through distribution centres in Melbourne, Sydney, Brisbane, Adelaide and Perth for delivery across Australia.
Disclaimer: We work hard to keep product details accurate and current, though occasional errors or omissions may occur. Specifications and features can also change without notice. Before purchasing or using a product, we encourage you to check the packaging or product listing, especially for materials or compatibility, to ensure it meets your needs.
Basic Specifications
| Brand | Canon |
|---|---|
| Model | imagePROGRAF TM-340 |
| Printer Type | 36-Inch Large Format Technical Printer |
| Print Head | PF-06 |
| Nozzle Configuration | 15,360 nozzles total (MBK: 5,120 nozzles; BK, C, M, Y: 2,560 nozzles each) |
| Droplet Size | Minimum 5 pl per colour |
| Memory | 2 GB RAM |
| Print Technology | Canon Bubblejet on Demand 5-Colour Integrated Type |
|---|---|
| Maximum Print Resolution | 2400 x 1200 dpi |
| Print Speed | 21 seconds per A1 page (CAD drawing) |
| Maximum Print Width | 36 Inch (914 mm) |
| Print Languages | SGRaster, HP-GL/2, HP RTL, JPEG, CALS G4 |
Media Handling
| Media Feed | Roll Feed: One Roll, Top-loading, Front Output Cut Sheet: Top-loading, Front Output |
|---|---|
| Roll Paper Sizes | ISO: A3, A3+, A2, A2+, A1, A0 JIS: B4, B3, B2, B1 ARCH: 12in, 18in, 24in, 30in, 36in Others: 8in-34in (300mm-800mm) |
| Cut Sheet Sizes | ISO: A4, A3, A3+, A2, B4, B3, B2, B1 DIN: C4, C3, C2, C1, C0 ANSI: 8.5x11in to 34x44in ARCH: 9x12in to 36x48in Photo & Poster: Various standard sizes up to 30x40in |
| Media Thickness | 0.07 mm - 0.8 mm |
| Maximum Roll Outer Diameter | 150 mm or less |
| Media Core Sizes | 2-inch or 3-inch Core (3-inch core adapter optional RH2-35) |
| Media Cutter | Automatic horizontal rotary cutter |
Connectivity & Network
| USB Interface | Hi-Speed USB (Full Speed 12 Mbit/sec, High Speed 480 Mbit/sec) |
|---|---|
| Ethernet | Gigabit Ethernet IEEE 802.3ab (1000BASE-T) / IEEE 802.3u (100BASE-TX) / IEEE 802.3 (10BASE-T) |
| Wireless LAN | Wi-Fi IEEE 802.11 b/g/n |
Software & Utilities
| Printing Utilities | Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver, Media Configuration Tool, Canon PRINT Inkjet/SELPHY, PosterArtist Web / PIXMA Cloud Link |
|---|---|
| Supported Operating Systems | Windows 11, Windows 10, Windows 8.1, Windows 7, Windows Server 2022/2019/2016/2012 R2/2012/2008 R2; macOS 10.15.7 - macOS 13 |
Power & Environment
| Power Supply | AC 100-240V (50-60 Hz) |
|---|---|
| Power Consumption | Operational: Approx. 65W Standby: Approx. 1.6W Power Off: Approx. 0.1W |
| Operational Environment | Temperature: 15°C - 30°C Humidity: 10% - 80% RH (non-condensing) |
Dimensions & Weight
| Dimensions (W x D x H) | 1285 x 868 x 1060 mm (with stand, basket opened) |
|---|---|
| Printer Weight | 59.2 kg (with stand) |
| Package Dimensions | 1462 x 913 x 801 mm |
| Package Weight | 100 kg |
Consumables
| Ink Cartridges | Canon PFI-030 Cyan, Yellow, Black, Matte Black (55ml) & PFI-031 Magenta (55ml) |
|---|---|
| Includes Ink/Toner Consumables | Yes |
| Ink/Toner Models Included | Starter ink tanks: MBK (80ml), C, M, Y, BK (55ml each) |
| Maintenance Cartridge | Canon MC-31 Maintenance Cartridge |
| Cutter Blade | Canon CT-08 Cutter Blade |
| Print Head | Canon PF-06 Print Head |
Warranty
| Warranty | 2 Years (24 Months) Manufacturer Warranty |
|---|
