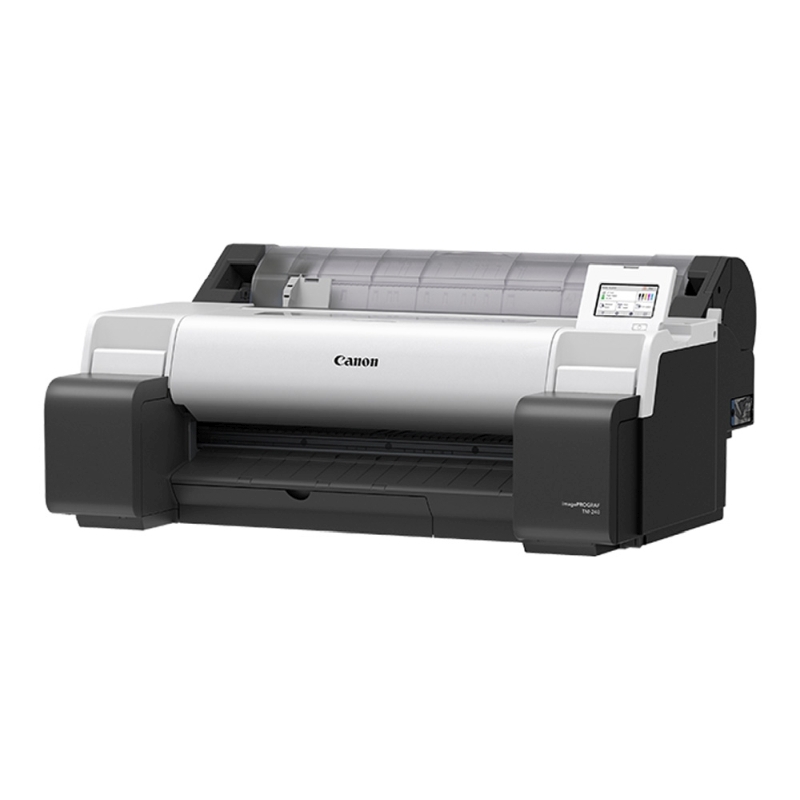

Canon imagePROGRAF TM-240 Colour Large Format Technical Printer

Shop Consumables

Canon imagePROGRAF TM-240 Colour Large Format Technical Printer

Brand: Canon

$1,928.27 (incl GST)

Earn 1,928 Loyalty Points

Low Stock – Please Call

Qty:

Or express checkout

Secure payments Visa

Description

The Canon imagePROGRAF TM-240 is a 24-inch colour large format technical printer designed to produce high-precision CAD drawings, GIS maps, posters, and technical documents. Engineered for architecture, engineering, construction, and corporate environments, it delivers fast output speeds of up to 23 seconds per A1 page with exceptional detail.

24-inch maximum print width for A1 documents and large-format media
Fast print speed producing A1 prints in as little as 23 seconds
5-colour all-pigment Lucia TD ink system for water-resistant and sharp line drawings
High-precision 2400 x 1200 dpi print resolution with the PF-06 print head
Uses Canon PFI-030 (Cyan, Yellow, Black, Matte Black) and PFI-031 (Magenta) ink tanks
Includes MBK (80ml) and C, M, Y, BK (55ml each) starter ink tanks for initial setup
Versatile media feeding supporting roll paper and cut sheets up to 0.8 mm thickness
Automatic horizontal rotary media cutter for clean output separation
Flexible connectivity options including Hi-Speed USB, Gigabit Ethernet, and Wi-Fi
Compatible with the Canon PRINT Inkjet/SELPHY app and PosterArtist Web workflow software

For customers across Australia, Canon imagePROGRAF TM-240 large format printer orders are fulfilled through distribution centres in Melbourne, Sydney, Brisbane, Adelaide and Perth.

Disclaimer: We work hard to keep product details accurate and current, though occasional errors or omissions may occur. Specifications and features can also change without notice. Before purchasing or using a product, we encourage you to check the packaging or product listing, especially for materials or compatibility, to ensure it meets your needs.

Basic Specifications

Brand	Canon
Model	imagePROGRAF TM-240
Printer Type	Colour Large Format Technical Printer
Functions	Print

Print Technology

Print Technology	5-Colour Pigment Inkjet
Print Head	PF-06
Number of Nozzles	MBK: 5,120 nozzles \| BK/C/M/Y: 2,560 nozzles each
Droplet Size	Minimum 5 pl per colour
Print Resolution	2400 x 1200 dpi
Maximum Print Speed	23 seconds per A1 page
Print Language	SGRaster, HP-GL/2, HP RTL, JPEG, CALS G4

Media Handling

Maximum Media Width	24 Inches (610 mm)
Media Feed	Roll Feed: One Roll (Top-loading, Front Output) \| Cut Sheet: Top-loading, Front Output
Roll Paper Sizes	ISO A3, A3+, A2, A2+, A1 \| JIS B4, B3, B2 \| ARCH 12", 18", 24"
Cut Sheet Sizes	ISO A4, A3, A3+, A2, A1 \| DIN C4, C3, C2 \| ANSI 8.5x11", 8.5x14", 11x17", 13x19", 17x22", 22x34" \| ARCH 9x12", 12x18", 18x24", 24x36"
Media Thickness	0.07 to 0.8 mm
Media Core Sizes	2-inch or 3-inch core (3-inch core adaptor available separately)
Maximum Roll Outer Diameter	150 mm or less
Media Cutter	Automatic horizontal rotary cutter

Connectivity & Network

Interface	Hi-Speed USB
Ethernet	Built-in Gigabit Ethernet (1000BASE-T / 100BASE-TX / 10BASE-T)
Wireless LAN	IEEE 802.11 b/g/n

Display & Memory

Memory	2 GB

Power & Environment

Power Supply	AC 100-240V (50-60 Hz)
Power Consumption	Operational: Approx 59 W \| Standby: Approx 1.6 W \| Power Off: Approx 0.1 W
Operating Temperature	15°C - 30°C
Operating Humidity	10% - 80% RH (non-condensing)

Software & Apps

Software Utilities	Accounting Manager, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver, Media Configuration Tool, PosterArtist Web
Mobile Apps	Canon PRINT Inkjet/SELPHY, Canon Print Service
Supported Operating Systems	Windows 11, 10, 8.1, 7; Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2; macOS 10.15.7 - macOS 13

Consumables

Ink Tanks	Canon PFI-030 (Cyan, Yellow, Black, Matte Black - 55ml) & Canon PFI-031 (Magenta - 55ml)
Includes Starter Inks	Yes (MBK: 80ml, BK/C/M/Y: 55ml each)
Maintenance Cartridge	MC-31
Cutter Blade	CT-08
