IQ Board QA 1310 Pro 98in
IQ Board QA 1310 Pro 98in
Features
- Large interactive display range designed for classrooms, meeting rooms, and collaborative spaces
- High‑performance system memory with 16GB RAM and 256GB ROM, ensuring fast operation, smooth multitasking, and ample storage for content and applications
- Advanced Android 13 with IQ OS, delivering smooth multitasking, customisable home screens, and powerful performance with 16GB RAM and 256GB storage
- Multi‑user interactive blackboard, supporting up to 9 users simultaneously with intuitive gesture‑based navigation
- AI‑powered 4K video conferencing, featuring a 48MP camera with auto framing, voice tracking, adaptive lighting, and noise cancellation
- Immersive audio system, with dual 20W speakers, a 20W subwoofer, and 8‑array microphones providing clear pickup across large rooms
- Seamless wireless collaboration, enabling screen sharing for up to 16 devices, 4K casting, real‑time annotation, and cross‑network sharing
Specifications
Display

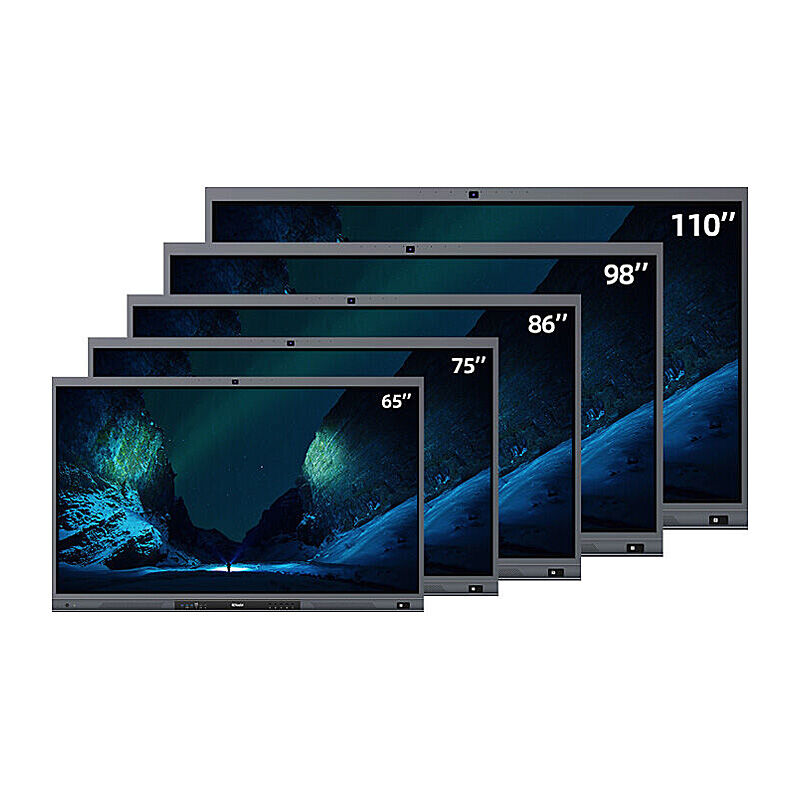

- Diagonal Size: 65" / 75" / 86" / 98"
- Brightness: 350 cd/m²
- Contrast Ratio: 1200:1 (65", 75", 98"); 1600:1 (86")
- Panel Type: TFT
- Backlight: Direct LED (DLED)
- Resolution: 4K UHD (3840 × 2160)
- Display Ratio: 16:9
- Response Rate: 8 ms (typ.)
- Refreshing Frequency: 60 Hz
- Viewing Angle: 178° (H), 178° (V)
- Backlight Life Time: 50,000 hours
- Display Colors: 10bit (D), 1.07 billion colors
- Glass: 4 mm Tempered Glass with Anti-Glare coating (8H)
- Dynamic Contrast Ratio: 5000:1
Interactivity
- Touch Technology: Infrared
- Touch Point: 40 point touch. 40 point writing under Windows. 20 Point writing under Android.
- Touch Resolution: 32768 × 32768 (px)
- Response Rate: <4 ms (single touch); <6 ms (max touch inputs)
- Touch Accuracy: ≤1 mm
- Recognition: Finger or pen
- Writing Height: 3 mm
- Minimum Touch Object: 2 mm
- Supported O.S.: HID Support & Win10 / Win8 / Win7 / macOS / Android / Chrome OS / Linux
Front Buttons
- Front Buttons: POWER, HOME, BACK, SETTING, CUSTOM
Connectivity
- USB 3.0 (Android & PC): 3
- HDMI IN 2.0: 1
- Touch-USB: 1
- TYPE-C (USB 2.0, Video & Audio & Touch & 65W): 1
Input
- RJ45 (10/100/1000 Mbit/s): 1
- HDMI 2.0 (4K@60fps): 2
- TYPE-C (USB 2.0, Video & Audio & Touch & 65W): 1
- USB 2.0 (Android) Type-A: 2
- USB 3.0 (Android & PC) Type-A: 2
- USB 2.0 (for Touch) Type-B: 2
- USB 2.0 (OTG): 1
- TF Card: 1
- MIC IN: 1
- RS232: 1
- DP: 1
Output
- HDMI 2.0 (4K@60fps): 1
- COAX SPDIF OUT: 1
- EARPHONE (3.5 mm Line Out): 1
- RJ45 (10/100/1000 Mbit/s): 1
Built-in Features
- Built-in Camera: 48M (Built-in 4K AI Camera with Auto Framing & Voice Tracking)
- Array Microphone: YES (8 Array microphone)
- Built-in Speaker: 20W × 2 + 20W
- Light Sensitivity: YES
- Temperature Monitor: YES
- Proximity Sensor: YES
Environment
- Working Temperature: 0? ~ 40?
- Storage Temperature: −20? ~ 60?
- Working Humidity: 20% ~ 80% RH Non-Condensing
- Storage Humidity: 20% ~ 90% RH Non-Condensing
Android
- CPU Framework: Cortex-A73*4 + Cortex-A53*4
- CPU Processor Speed: 2.2GHz
- GPU: Arm Mali-G52 MP8 (BEE)
- RAM: 16G
- ROM: 256G
- Hotspot: IEEE 802.11 a/b/g/n/ac, IEEE 802.1x, WPA2, and station mode (2.4G/5G Dual-band)
- Bluetooth: 5.2
- NFC: YES
- WiFi: IEEE 802.11 a/b/g/n/ac/ax, IEEE 802.1x, WPA2, Wi-Fi 6 and station mode (2.4G/5G Dual-band)
- OS Version: Android 13.0
- Screensharing: EShare Pro
- Device Management: RDM
- Document Camera Software: IQView
OPS (Optional)
- Chipset: Intel
- CPU: Intel® Core i3 / i5 / i7
- Memory: 4GB / 8GB / 16GB
- HDD: 500GB / 1TB
- SSD (Optional): 128GB / 256GB / 512GB
- Pre-installed Software: IQCLASS ONE
- Interfaces (Subject to model):
- USB 2.0 × 2
- USB 3.0 × 2
- LAN × 1
- HDMI × 1
- LINE-OUT × 1
- MIC-IN × 1
Power
- Voltage: 100V ~ 240V AC 50 / 60Hz
- Maximum Power:
- 65": ≤350W
- 75": ≤400W
- 86": ≤450W
- 98": ≤750W
- Standby Power: ≤0.5W
Physical
- Screen Sizes: 65" / 75" / 86" / 98"
- Net Weight (kg):
- 65": 40 ±1.5
- 75": 56 ±1.5
- 86": 66 ±1.5
- 98": 106 ±1.5
- Gross Weight (kg):
- 65": 46 ±1.5
- 75": 70 ±1.5
- 86": 81 ±1.5
- 98": 121 ±1.5
- Product Size (mm) (W × H × D):
- 65": 1501 × 930 × 116
- 75": 1723 × 1055 × 116
- 86": 1968 × 1194 × 116
- 98": 2233 × 1346 × 105
- Packing Size (mm) (W × H × D):
- 65": 1576 × 980 × 200
- 75": 1800 × 1125 × 200
- 86": 2044 × 1262 × 200
- 98": 2306 × 1520 × 200
- VESA Hole Position (mm):
- 65": 4-M8 screw hole 500×400
- 75": 4-M8 screw hole 600×400
- 86": 4-M8 screw hole 800×400
- 98": 4-M8 screw hole 1000×400
Accessories
- Power Cord: 1 (1.5m)
- HDMI Cable: 1 (1.5m)
- USB Cable: 1 (1.5m)
- Remote Controller: 1
- NFC Card: 1
- Colorless Writing Pen: 2
- Wall Mounting Brackets: 1
Language
- OSD Languages: English, French, German, Russian, Japanese, Korean, Polish, Portuguese, Vietnamese, Spanish, Italian, Arabic, Simplified Chinese, Traditional Chinese, Ukrainian
Certificate
- CE, FCC, ROHS, BIS, IEC, WEEEE, Energy Star, CB, IECEE, TUV Low blue light, ERP
Warranty
- Warranty term and upgrade options vary by region. Contact your local reseller or distributor for information.
