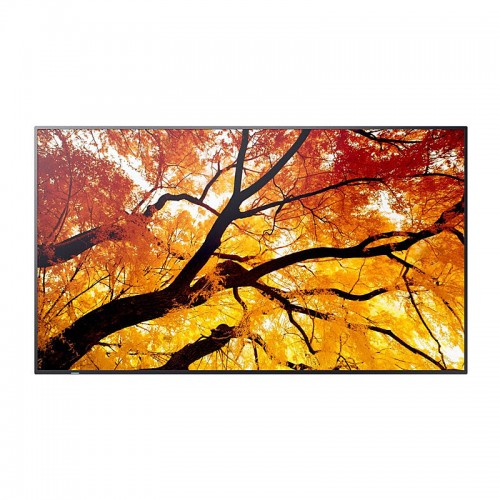

Sharp MultiSync M652 65in Large Format Display

$4,180.18 (incl GST)

Qty:

Buy instantly with Apple Pay or Google Pay — no account needed

Manufacturer	Sharp
Model	PN-M652
Technology	Tech, Corporate Displays
Manufacture Type	Genuine

Sharp M-Series 65in Display. Sharp Commercial Display with 550nits Brightness and High Haze. Landscape or Portrait use. USB-C, HDMI and DP inputs, with SDM-S/L and RPi CM4/5 expansion slots. SpectraView Engine and Video & LAN daisychain. Full commercial feature set. 24/7 use.
https://sharp.net.au/products/pn-m652-m-65in-uhd-550nits-24-7-m652-display

Sharp has gone from strength to strength over the years and prides itself on producing breakthrough products that meet the needs of the consumer.

Features

Seamless meeting workflows – a single USB-C cable transmits video, data, and power for instant, clutter-free meeting setups. As the established standard for modern collaboration spaces, USB-C supports frictionless BYOD experiences.
Unhindered readability – a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment.
Security assured – 802.1x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
Enhanced imaging precision – when brand consistency and corporate identity are important, NEC’s SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
Broad AV compatibility – fully interoperable with leading meeting room platforms including Crestron (XiO Cloud), Cisco Webex, Q-Sys, and Microsoft Teams, ensuring effortless integration and future-proof scalability.

Specifications

General Information

Panel Technology: IPS with Direct LED backlights
Active Screen Area (W × H): 1,428.48 × 803.52 mm
Screen Size: 65 inch
Aspect Ratio: 16:9
Pixel Pitch: 0.372 mm
Brightness: 550 cd/m²
Contrast Ratio: 8000:1
Viewing Angle (H/V): 178° / 178° (typ. at CR 10:1)
Colour Depth: 1.073 bn (10‑bit)
Colour Gamut: 72% of NTSC
Response Time: 8 ms
Panel Refresh Rate: 60 Hz
Haze Level: 25%
Supported Orientation: Face Up; Landscape; Portrait

Resolution

Native Resolution: 3840 × 2160
Supported Resolutions: 640 × 480; 720 × 400; 720 × 480; 1024 × 768; 1280 × 720; 1280 × 800; 1280 × 1024; 1360 × 768; 1366 × 768; 1400 × 1050; 1440 × 900; 1600 × 1200; 1680 × 1050; 1920 × 1080; 1920 × 1200; 1920 × 2160; 3840 × 2160; 4096 × 2160

Synchronisation Rate

Horizontal Frequency: 15–135 kHz
Vertical Frequency: 23–76 Hz

Connectivity

HDMI IN 1: Video Input; UHD (60 Hz) HDCP 2.2; Audio Input; ARC; CEC
HDMI IN 2: Video Input; UHD (60 Hz) HDCP 2.2; Audio Input; CEC
HDMI OUT: Video Output; UHD (60 Hz) HDCP 2.2; Audio Output; Loop Through: HDMI IN 2, Option, Compute module
DP IN 1: Video Input; UHD (60 Hz) DP 1.2; HDCP 2.2; Audio Input
DP OUT: Video Output; UHD (60 Hz) DP 1.2; HDCP 2.2; Audio Output; Loop Through: DisplayPort IN, USB‑C 2
USB‑A 1: USB 2.0 / 3.2; 4.5 W; Peripherals; USB Storage
USB‑A (Service): 2.5 W; Service
USB‑C 1: Video Input; UHD (60 Hz); DP Alt 1.2; HDCP 2.2; Audio Input; USB 2.0 / 3.2; 65 W
USB‑C 2: USB 2.0 / 3.2; 7.5 W; Peripherals; Storage
Audio Output (3.5 mm): Line Out
LAN 1: 100 MBit/s
LAN 2: Loop Through: LAN 1, RS‑232C, IR; 100 MBit/s
RS‑232C: 9600 bps
Remote In (3.5 mm): Eco Sensor (IR‑Extender, Ambient and Presence)

Calibration

Factory Calibration: Gamma; Intensity; RGB; Uniformity; White Point
Calibration with Software: Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point
Calibration Software: Display Wall Calibrator

Open Modular Intelligence

Compute Module Slot: RPi4 Compute Module
Intel® SDM: Accepts Intel® Smart Display Modules Large and Small up to 66 W

Sensors

Ambient Light Sensor: Integrated, triggered actions programmable
Temperature Sensor: Integrated, 3 sensors, triggered actions programmable
Human Sensor: Optional via Eco Sensor (PNKTES1)

Electrical

Power Consumption: 135 W (shipping)
Power Savings Mode: < 0.5 W; < 2 W (Networked Standby)
Power Management: VESA DPMS
Power Supply: 100–240 V AC; 50/60 Hz; internal

Environmental

Operating Temperature: 0°C to 40°C
Operating Humidity: 20% to 80%
Storage Temperature: -20°C to 60°C
Storage Humidity: 10% to 80%

Mechanical

Dimensions (W × H × D): 1,454.5 × 832.4 × 59.5 mm
Weight: 26 kg
VESA Mounting: 400 × 400 mm (FDMI); 4 holes; M6
Bezel Width: 11 mm (left, right, top); 13.9 mm (bottom)
Ingress Protection: IP5x (front); IP2x (back)
Packaging Dimensions (W × H × D): 1,620 × 950 × 185 mm
Packaging Weight: 35 kg
Material: Metal

Available Options

Accessories: Eco Sensor (PNKTES1); Soundbar (PN‑ZCMS1)

Other Features

Safety and Ergonomics: CE; RCM; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C‑UL or CSA
Pixel Failure Class: ISO 9241‑307, Class 1
Resistance to Fire: Metal backcover; plastic material certified acc. to UL94‑5VB
Energy Efficiency: 103 kWh/1000 h; Class G; LED backlight
Ecological Standards: EnergyStar 8.0
3rd Party Certifications: Certified for Crestron CCV2 and XiO Cloud
Special Characteristics: CEC Support; Clone Settings; DICOM Simulation; HDMI ARC; Scheduler
Colour Versions: Black Front Bezel, Black Back Cabinet
Audio: Integrated Speakers (10 W + 10 W)
Shipping Content: 2× AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
Operating Hours: 24/7
External Control: AMX NetLinx Support; Crestron V2; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
Remote Management: NaViSet Administrator 2
Security: Disable HW Buttons; Disable IR Functionality; Emergency Notification; IEEE802.1X (LAN)
