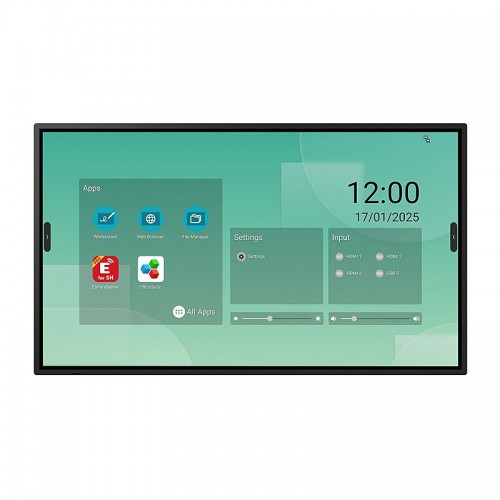

Sharp PN-LM431 43in LCD Infrared Touch Display

Sharp LM-Series 43in touch. Sharp Recommended for 18/7 applications. 4K Display at up to 500nits brightness and 10W stereo speakers. Infrared touch up to 20 multi-touch. Built-in SoC with Android 14 and easy-to-use Applications. Ships with 2x Passive Stylus & Wireless Adapter.
https://sharp.net.au/products/pn-lm431-43in-4k-500nit-precision-touch-display-b859

Sharp has gone from strength to strength over the years and prides itself on producing breakthrough products that meet the needs of the consumer.

Features

Best readability – high brightness panel ensures content is readable even in well-lit environments and anti-glare coating avoids distracting reflections.
Pen-On-Paper user experience – zero bonded glass and latest infrared touch technology enable highly accurate and responsive writing and drawing with up to 20 touch points.
Out-of-the-box collaboration – the integrated Android PC features a powerful home screen launcher offering fast and flexible access to a range of pre-installed applications.
Highly customizable – a variety of settings allow the display to be optimised to meet the needs of different applications, from small meeting and huddle rooms to touch signage and wayfinding.
Safe & Secure – latest Android 14 SoC provides a secure operating system which, together with extra security features, meets the highest IT security standards.

Specifications

General Information

Panel Technology: VA with Direct LED backlights
Screen Size: 43 inch
Aspect Ratio: 16:9
Contrast Ratio: 4000:1
Brightness (without glass): 500 cd/m2
Viewing Angle (H/V): 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn]: 1.073 (8bit + FRC)
Response Time (typ.) [ms]: 8 (grey-to-grey)
Panel Refresh Rate (Hz): 60Hz
Haze Level (%): 25
Supported Orientation: Landscape; Portrait; Tilt (0 to 45°)

Resolution

Native Resolution: 3840 x 2160
Supported Resolution: 1024 x 768; 1280 x 1024; 1280 x 720; 1280 x 960; 1440 x 900; 1680 x 1050; 1920 x 1080; 3840 x 2160; 4096 x 2160; 640 x 480; 720 x 400; 800 x 600

Touch Screen

Touch Technology: Infrared
Multi Touch: Real multi-touch up to 20 touches
Touch Method: Finger; Gloves; Stylus dual pen tip (2.6mm/6.8mm)
Supported Operating System: Native Multi-Touch: Windows 10/11, Linux, Android, Chrome OS; Single Touch (Default Mouse): Mac OS 13/14/15
Data Interface: USB 2.0 (full speed) HID; USB powered, plug & play
Accuracy [mm]: +/- 1
Windows Ink: Yes
Palm Rejection: No

Glass

Type: Thermal-tempered, anti-glare coating; Zero Bonding
Bonding Gap [mm]: 0.85
Thickness [mm]: 3.1
Hardness [H]: 9

Synchronisation Rate

Horizontal Frequency [kHz]: 31.5 - 135
Vertical Frequency [Hz]: 24 - 70

Connectivity

HDMI IN 1: Video Input; UHD (60 Hz) HDCP (2.3); Audio Input; CEC
HDMI IN 2: Video Input; UHD (60 Hz) HDCP (2.3); Audio Input; CEC
HDMI IN 3: ARC; Video Input; UHD (60 Hz) HDCP (2.3); Audio Input; CEC
HDMI OUT: Internal SoC content: FHD (60 Hz) HDCP (2.3); UHD (60 Hz); Video Output; Audio Output; Loop Through: HDMI IN 1/2/3, OPS, Android SoC
USB-A 1: USB (3.0); Peripherals; USB Storage; Auto Switch (Android SoC, OPS, PC)
USB-A 2: USB (3.0); Peripherals; USB Storage
USB-A 3: USB (3.0); Peripherals; USB Storage; Auto Switch (Android SoC, OPS, PC)
USB-A (Service): Wireless Adapter; USB 2.0; Service
USB-C 1: Touch Signal; Video Input; UHD (60 Hz); DP alt. 1.4; HDCP (2.3); Audio Input; USB 2.0 / 3.0; 65 W
USB-C 2: USB 3.0; 7.5 W; Peripherals; Auto Switch (Android SoC, OPS, PC)
USB-B 1: Touch Signal; USB (3.0)
Audio Output (3.5 mm): Audio Output; Line Out
LAN 1: 100 MBit/s
RS-232C: 9600 bps
Remote In (3.5 mm): Eco Sensor (IR-Extender, Ambient and Presence)
Input Detect: First

Sensors

Ambient Light Sensor: Integrated, triggered actions programmable
Human Sensor: Optional via Eco Sensor (PNKTES1)

Electrical

Power Supply: 100-240V AC, 50/60 Hz
Power Consumption: 110W shipping
Power Savings Mode: < 0.5; < 2 (Networked Standby)
Power Management: VESA DPMS

Environmental

Operating Temperature: +5ºC to +35ºC
Operating Humidity: 20% to 80%
Storage Temperature: -20ºC to 60ºC
Storage Humidity: 10% to 80%

Mechanical

Dimensions (W x H x D) [mm]: Without stand: 994 x 582 x 73
Weight [kg]: 21
VESA Mounting [mm]: 400 x 400 (FDMI); 4 holes; M6
Bezel Width [mm]: 15
Packaging Dimensions (W x H x D) [mm]: 1,140 x 740 x 185
Packaging Weight [kg]: 29
Material: Aluminum alloy (front side); metal (back side)

Available Options

Accessories: Eco Sensor (PNKTES1); Soundbar (PN-ZCMS1)

Embedded Computing

System Version: Android 14
CPU: Arm Cortex A53x4 2 GHz (octo-core); Arm Cortex A73x4 2.3 GHz
System Memory: 4G RAM
Internal Storage: 32GB ROM
Android Features: App side loading (Google CTS compliant); Application lock; Hide Android SoC; Hide side bar; Portrait support (apps and OSD)
Built-in Applications: File Manager; Input Select; Office and PDF Viewer - Office Suite; Setting; Web Browser; Whiteboard; Wireless Screen Sharing - E-Share
Built-in Tools: Annotation overlay mode

Other Features

Safety and Ergonomics: CE; EMC Class B; RoHS; UKCA
Pixel Failure Class: ISO 9241-307, Class 1
Energy Efficiency: ECOMode; LED backlight
Ecological Standards: EnergyStar 8.0
Special Characteristics: CEC Support; HDMI ARC; NaViSet Administrator 2 - free download; OSD rotation for portrait mode; Powered USB Port (65 W); Scheduler
Audio: Integrated Speakers (10 W + 10 W)
Shipping Content (Accessories): 2 x Passive Stylus; 2x AAA batteries; Blank Sticker; Bracket for Camera; Cable Clamps; Display; Power Cable; Remote Control; Setup Manual; USB cable; Wireless Adapter
Operating Hours: 18/7
External Control: HDMI CEC; Scheduled Timer
Remote Management: NaViSet Administrator 2
Security: Disable HW Buttons; Disable IR Functionality; Disable USB and LAN Ports; IEEE802.1X (Wi-Fi)
