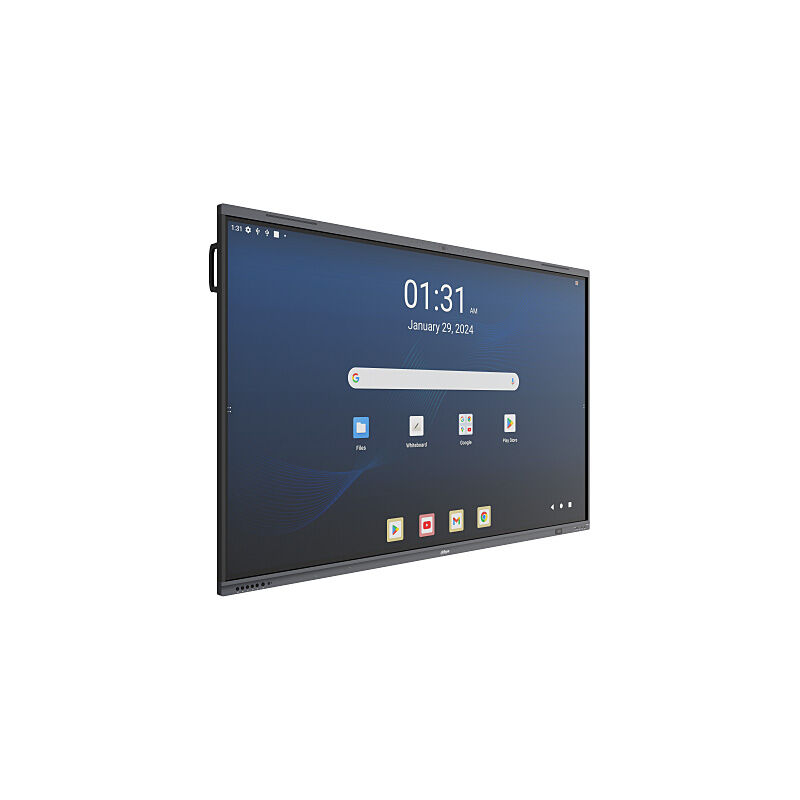

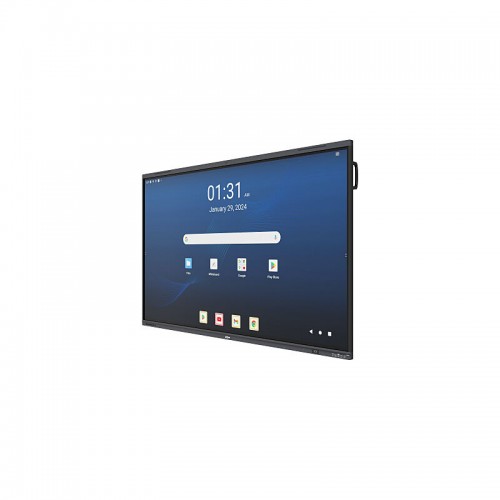

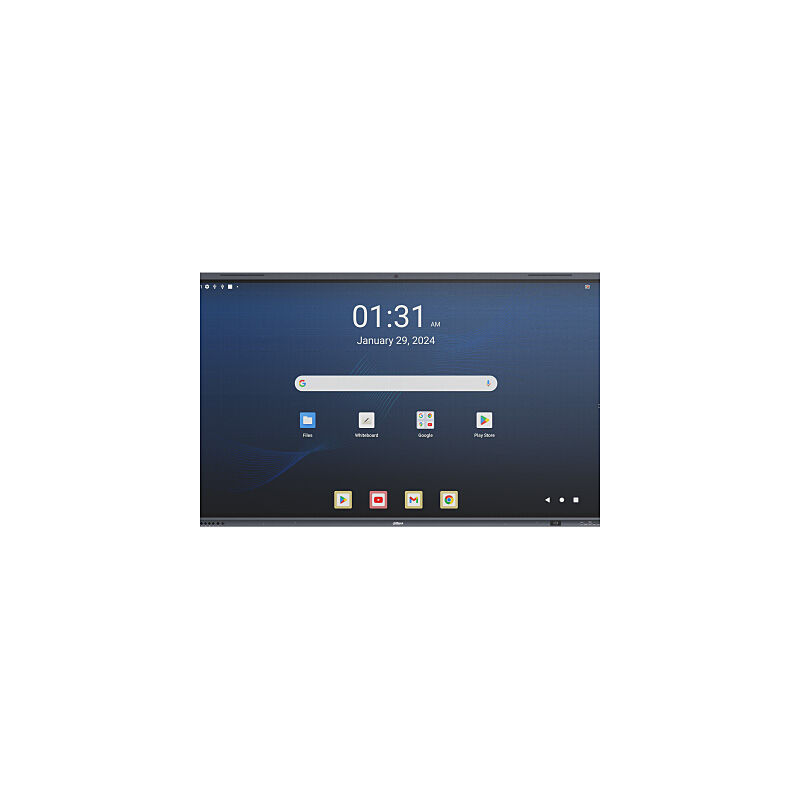

Dahua 86in UHD Pro Whiteboard
Dahua 86in UHD Pro Series Smart Interactive Whiteboard with Built-in Camera; Google Series
Features
- Displays in 4K Ultra HD and uses 4K UI
- Features split screen and performs screen sharing between the whiteboard and phones, computers, tablets, and more devices
- Microsoft Office and other related software can be installed, and it can play audio and video files in various formats
- Offers a smooth writing experience through handwriting recognition, pen writing, fast writing response speed, and pen pressure recognition for a real writing experience
- Intelligent text
- Intelligent pen detection that automatically wakes up the whiteboard for annotations when the pen is lifted; built-in 48M camera and 8-array microphone design
- Features sound source positioning
- Offers NFC
- Includes a full-featured Type-C IN port and supports charging through USB PD up to 100 W
- With its 2 built-in mid-high frequency speakers and 2 low-frequency speakers, the device emits sound from its top and supports 2.2-channel audio output
- Produces vibrant visuals through its high color coverage, low blue light emission, and accurate color reproduction
- Optional OPS module, dual-system switchable
Specifications
Built-in System
- Main Processor: RK3588
- Operating System: Android 15
- CPU: Quad-core A76 + Quad-core A55
- CPU Frequency: 2.4 GHz
- GPU: Mali-G610 MP4
- RAM: 8 GB
- ROM: 128 GB
General
- Operating System of External Module: Windows 7/8/10/11
- Power Supply: 100–240 VAC, 50/60 Hz, 6.5 A
- Power Consumption: 320 W (typ.); 650 W (max.)
- Standby Power Consumption: ≤0.5 W
- Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% RH
- Storage Humidity: 10%–90% RH
- Product Material: Metal
- Glass: 3.2 mm anti-glare tempered glass
- Casing Color (Frame/Rear): Black
- Product Dimensions: 1,957.1 mm × 1,178.6 mm × 98.5 mm (77.05" × 46.40" × 3.88")
- Frame Size: U: 33.3 mm, L/R: 14.6 mm, D: 43.0 mm (U: 2.42", L/R: 0.69", D: 1.11")
- Packaging Dimensions: 2,110.0 mm × 225.0 mm × 1,304 mm (83.07" × 8.86" × 51.34") (L × W × H)
- Net Weight: 64.38 kg (141.94 lb)
- Gross Weight: 77.60 kg (171.08 lb)
- Holes Distance: 800 mm × 600 mm (31.50" × 23.62")
- Installation: Wall mount or mobile bracket
Packing List
- Power cord × 1
- Smart interactive whiteboard × 1
- Stylus pen × 2
- Wall mount bracket × 1
- Remote control × 1
- Pack of wall mount screws × 1
- Wireless plug-in module × 1
- Quick start guide × 1
- Legal and regulatory information × 1
LCD Panel
- Screen Size: 86 inch
- Backlight: DLED
- Aspect Ratio: 16:9
- Brightness: 400 cd/m² (typ.)
- Static Contrast Ratio: VA: 5000:1 (typ.); IPS: 1200:1 (typ.)
- Resolution: 3,840 (H) × 2,160 (V)
- Viewing Angle: 178° (H) / 178° (V)
- Lifespan: ≥50,000 hrs
- Display Color: 1.07 Billion (10 bits)
- Color Gamut: 90% NTSC
- Response Time: 8 ms
- Refresh Rate: 60 Hz
Camera
- Android: Photo: 48 MP; Video: 8 MP
- Windows: Photo: 8 MP; Video: 8 MP
- Field of View: H: 98°; D: 106°
Device Ports
- Light Sensor: Yes
- Front Button: 6 buttons (Power supply, menu, signal source, curtain, volume, annotation)
- Front Ports:
- 2 × USB 3.2 Gen1 Type-A
- 1 × HDMI IN
- 1 × USB Type-C IN (100 W fast charge, data transmission, LAN)
- 1 × Touch USB 2.0 Type-B
- Rear Ports:
- 3 × HDMI IN (4K@60 Hz)
- 1 × HDMI OUT (4K@60 Hz)
- 1 × DP IN
- 1 × USB 2.0 Type-A
- 2 × USB 3.2 Gen1 Type-A
- 1 × USB Type-C IN (15 W max charge, audio/video/data/network)
- 1 × USB Type-C OUT (4K@60 Hz)
- 2 × TOUCH USB 2.0 Type-B (touch + 100 Mbps network sharing)
- 1 × AUDIO IN (3.5 mm)
- 1 × AUDIO OUT (3.5 mm)
- 1 × SPDIF
- 1 × RS232
- 1 × RJ45 IN (10/100/1,000 Mbps)
- 1 × RJ45 OUT (10/100/1,000 Mbps)
Wireless
- Wi-Fi: Yes
- Wi-Fi Standard: 802.11b/g/n/a/ac/ax (Station); 802.11b/g/n/a/ac (AP)
- Wi-Fi Frequency Range:
- 2400–2483.5 MHz
- 5150–5250 MHz
- 5250–5350 MHz
- 5470–5725 MHz
- 5725–5850 MHz
- MAX Power Transmission (Wi-Fi):
- ≤20 dBm @ 2400–2483.5 MHz
- ≤23 dBm @ 5150–5250 MHz
- ≤20 dBm @ 5250–5350 MHz
- ≤27 dBm @ 5470–5725 MHz
- ≤14 dBm @ 5725–5850 MHz
- Bluetooth: Yes
- Bluetooth Standard: BT5.2 BR/EDR/BLE
- Bluetooth Frequency Range: ≤20 dBm @ 2400–2483.5 MHz
- MAX Power Transmission (Bluetooth): ≤20 dBm
- RFID Modulation Method: ASK
- RFID Frequency Range: 13.56 MHz
- MAX Power Transmission (RFID): 13.56 MHz: ≤42 dBuA/m @ 10 m
Function
- IR Receiver: 1
- Card Swiping with NFC: Yes
- Wireless Access Point: Wi-Fi 5, 2.4 GHz & 5 GHz dual band, 802.11 ac/n
Touchscreen
- Response Time: ≤2.0 ms
- Touch Technology: Infrared
- Attachment Method: Zero Air Gap
- Touch Points: Android: 32 points; Windows: 50 points
- Touch Accuracy: ±0.5 mm (≥90% touching area)
- Valid Touch: ≥1.5 mm (0.06") (≥90% touching area)
- Touch Height: ≤0.99 mm (average)
- Writing Mode: Finger and stylus pen (magnetic)
- Communication Mode: USB
- Anti-light Interference: Anti-glare tempered glass
- Surface Hardness: ≥9H
- Touch Resolution: 32,768 × 32,768
Speaker
- Built-in Speaker: 4 (CH2.2)
- Power: 2 × 8 W + 2 × 18 W
- Frequency: 150 Hz–20 kHz
Microphone
- Microphone: 8
- Pick-up Distance: 0 m–12 m (0 ft–39.37 ft)
- AGC: Yes
- Echo Cancellation: Yes
- Intelligent Noise Filtering: Yes
Certification
- Certifications: CE, EDLA, Energy Star
