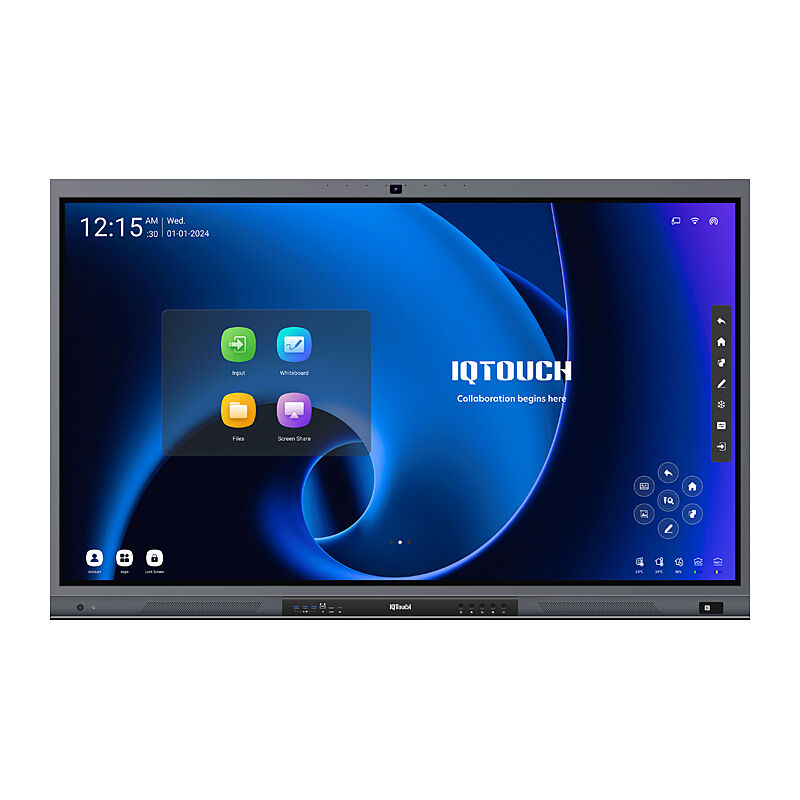

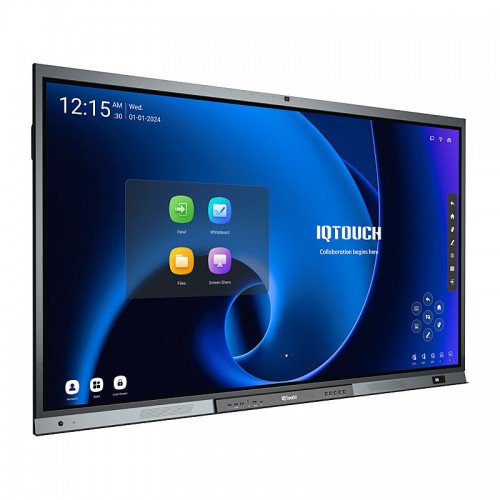

IQ Board QA 1300 Pro 75in

Features

The advanced Android 13 with IQ OS
4K AI Camera and 8-Microphone Array
Precision Touch and Writing Enhancement
Q Button Customization
DMS Remote Control
NFC Access Control
Touch-Free Control and Health Monitoring

Specifications

Display

Model: LE075MD
Diagonal Size: 75"
Brightness: 350 cd/m2
Contrast Ratio: 1600:1
Panel Type: TFT
Backlight: Direct LED (DLED)
Resolution: 4K UHD (3840×2160)
Display Ratio: 16:9
Response Rate: 8 ms (typ.)
Refreshing Frequency: 60 Hz
Viewing Angle: 178°(H), 178°(V)
Backlight Life Time: 50,000 hrs
Display Colors: 10bit(D), 1.07 Billion colors
Glass: 4 mm Tempered Glass with Anti-Glare coating (8H)
Dynamic Contrast Ratio: 5000:1

Interactivity

Touch Technology: Infrared
Touch Point: 40-point touch; 40-point writing under Windows; 20-point writing under Android
Touch Resolution: 32768 × 32768 px
Response Rate: <4 ms (single touch); <6 ms (max touch inputs)
Touch Accuracy: ≤1 mm
Recognition: Finger or pen
Writing Height: 3 mm
Minimum Touch Object: 2 mm
Supported O.S.: HID Support & Win10/Win8/Win7/Mac OS/Android/Chrome OS/Linux

Physical Specifications

Net Weight: 56 Kg±1.5 Kg
Gross Weight: 70 Kg±1.5 Kg
Product Size (mm) (W × H × D): 1723 × 1055 × 87
Packing Size (mm) (W × H × D): 1800 × 1125 × 200
VESA Hole: 4-M8 screw
Position hole (mm): 600 × 400

Environmental

Working Temperature: 0°C ~ 40°C
Storage Temperature: -20°C ~ 60°C
Working Humidity: 20% ~ 80% RH Non-Condensing
Storage Humidity: 20% ~ 90% RH Non-Condensing

Power

Voltage: 100V~240V AC 50 / 60Hz
Maximum Power: ≤400W
Standby Power: ≤0.5W

Front Buttons

POWER, HOME, BACK, SETTING, CUSTOM

IQTouch QA1300 Pro Specifications

Air sensors: Temperature, Humidity, VOC, PM2.5
Language OSD: English, French, German, Russian, Japanese, Korean, Polish, Portuguese, Vietnamese, Spanish, Italian, Arabic, Simplified Chinese, Traditional Chinese

Android

CPU Framework: Cortex-A73*4 + Cortex-A53*4
CPU Processor Speed: 2.2GHz
GPU: Arm Mali-G52 MP8 (8EE)
RAM: 8G
ROM: 128G
OS Version: 13.0
Hotspot: IEEE 802.11 a/b/g/n/ac, IEEE 802.1x, WPA2, station mode (2.4G/5G Dual-band)
Bluetooth: 5.2
NFC: YES
WiFi: IEEE 802.11 a/b/g/n/ac/ax, IEEE 802.1x, WPA2, Wi-Fi6, station mode (2.4G/5G Dual-band)

OPS (Optional)

Chipset: Intel
CPU: Intel® Core i3/i5/i7
Memory: 4GB/8GB/16GB
HDD: 500GB/1TB
SSD (optional): 128GB/256GB/512GB

OPS Interfaces (Subject to model)

USB2.0: 2
USB3.0: 2
LAN: 1
HDMI: 1
LINE-OUT: 1
MIC-IN: 1

Connectivity

Front USB (Android&PC) 3.0: 3
HDMI IN 2.0: 1
Touch-USB: 1
TYPE-C (USB2.0&Video&Audio&Touch&65W): 1
RJ45 (10/100/1000 Mbit/s): 1
HDMI 2.0 (4K@60fps): 2
TYPE-C (USB2.0&Video&Audio&Touch&65W): 1
USB2.0 (Android) Type-A: 2
USB3.0 (Android&PC) Type-A: 2
USB2.0 (for Touch) Type B: 2
USB2.0 (OTG): 1
TF Card: 1
MIC IN: 1
RS232: 1
DP: 1

Output

HDMI 2.0 (4K@60fps): 1
COAX SPDIF OUT: 1
EARPHONE (3.5 mm Line Out): 1
RJ45 (10/100/1000 Mbit/s): 1

Built-in Camera

48M (Built-in 4K AI Camera with Auto Framing & Voice Tracking)

Array Microphone

YES (8 Array microphone)

Built-in Speaker

20W*2 + 20W

Light Sensitivity

Temperature Monitor

Proximity Sensor
