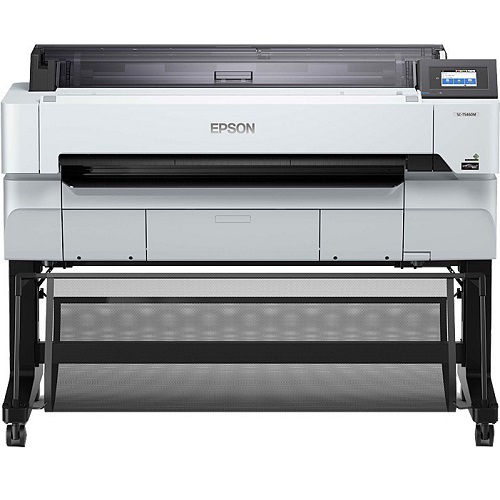

Epson SureColor T5460M Multifunction Colour Large Format Technical Printer
Description
The Epson SureColor T5460M is a 36-inch (914mm) multifunction colour large-format technical printer designed for high-speed, high-precision technical printing, scanning, and copying. Featuring an integrated pass-through scanner, PrecisionCore TFP print head technology, and UltraChrome XD2 all-pigment ink, it produces water- and rub-resistant architectural plans, CAD drawings, maps, and posters. Designed for architects, engineers, construction firms, and corporate environments, it offers an integrated, space-saving workflow with standalone copy and scan capabilities.
- 36-inch (914mm) maximum print width with an integrated CIS sheet pass-through document scanner
- Prints A1 CAD line drawings in as little as 22 seconds
- Integrated dual-light CIS scanner scans A1 mono plans in as fast as 4 seconds (19.05 cm/s mono scan speed)
- PrecisionCore TFP print head delivers high-precision output at resolutions up to 2400 x 1200 dpi
- Uses Epson UltraChrome XD2 all-pigment aqueous ink cartridges (110ml and 350ml capacities)
- Supports roll media up to 914mm wide and top-loaded single sheets from A4 to A0/B1
- Intuitive 4.3-inch colour LCD touchscreen control panel for effortless operation
- Front USB host port enables direct JPEG and TIFF printing from a USB thumb drive
- Comprehensive connectivity including USB 3.0, Gigabit Ethernet, Wi-Fi, Wi-Fi Direct, and Apple AirPrint
- Includes a set of 110ml starter ink cartridges and 1 x maintenance tank for initial setup
- Compatible with Epson Print Automate software for streamlined production workflows
For manufacturer information, see the Epson SureColor T5460M on Epson Australia.
For customers across Australia, Epson SureColor T5460M large-format printer orders are fulfilled through distribution centres in Melbourne, Sydney, Brisbane, Adelaide and Perth.
Disclaimer: We work hard to keep product details accurate and current, though occasional errors or omissions may occur. Specifications and features can also change without notice. Before purchasing or using a product, we encourage you to check the packaging or product listing, especially for materials or compatibility, to ensure it meets your needs.
Basic Specifications
| Brand | Epson |
|---|---|
| Model | SureColor T5460M |
| Functions | Print, Scan, Copy |
| Printer Type | Multifunction Colour Large Format Technical Printer |
| Control Panel | 4.3-inch Colour LCD Touchscreen |
| Memory | 1GB RAM + 8GB Micro SD Card |
| Physical Dimensions (WxDxH) | 1385 x 750 x 1070 mm (Floor Standing, Closed Basket, No Ink/Media) |
| Weight | 89 kg |
Print Technology & Performance
| Maximum Print Width | 36 inches (914 mm) |
|---|---|
| Print Head | PrecisionCore TFP with VSDT and Auto Head Alignment |
| Print Modes | Uni-directional & Bi-directional |
| Nozzle Configuration | 800 nozzles per colour |
| Maximum Print Resolution | 2400 x 1200 dpi |
| Minimum Ink Droplet Size | 4.0 pl |
| Print Speed | 22 seconds per A1 sheet (CAD Speed Mode) |
Scan & Copy
| Scan Technology | Contact Image Sensor (CIS) with RGB filters |
|---|---|
| Light Source | Dual Low Angle |
| Feed System | Single sheet pass-through (front loading) |
| Maximum Optical Resolution | 600 dpi |
| Maximum Scan Speed | 19.05 cm/s (7.5 ips) Mono / 11.43 cm/s (4.5 ips) Colour |
| A1 Mono Scan Speed | As fast as 4 seconds |
| Maximum Copy Speed | 38 seconds per A1 sheet mono / 44 seconds per A1 sheet colour |
| Copy Scaling | 25% to 400%, Auto Fit (1 to 99 copies) |
| Scan-to Formats | JPEG, PDF, TIFF |
| Scan Media Types | Plain, Matte, Recycled, Glossy paper, Film, Newspaper & Tracing Paper (0.064mm to 0.8mm thick, or 0.55mm with optional carrier sheet) |
Media Handling
| Roll Media Format | Single roll top-loaded spindle, 2" core (3" core for plain paper), 0.08 to 0.3mm thick, 254 to 914mm wide, 170mm max diameter, max weight 12kg |
|---|---|
| Sheet Format | Top-loaded single sheets (A4 to A0 / B1), 279.4 to 1580mm length, 0.08 to 0.3mm thick |
| Borderless Printing | Supported widths: A1 (594mm), A1+ (610mm), 700mm, B1 (728mm), A0 (841mm), A0+ (914mm); Cut sheet left/right borderless |
| Auto Cutter | Inbuilt rotary type |
| Media Basket | Included with printer stand |
Connectivity & Software
| Wired Connectivity | USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T |
|---|---|
| Wireless Connectivity | Wi-Fi, Wi-Fi Direct, Apple AirPrint |
| USB Input Slot | Front panel USB slot for direct printing of JPEG and TIFF files from thumb drives |
| Control Codes / Emulations | ESC/P2, ESC/P Raster, HP/GL/2, HP RTL |
| Included Software | Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only) |
| Downloadable Software | HDI driver, CopyFactory, EpsonNet SetupManager, Epson Device Admin, Epson Edge Dashboard, Epson Print Automate, LFP Accounting Tool |
Consumables
| Ink System | Epson UltraChrome XD2 All-Pigment Aqueous Ink |
|---|---|
| Ink Colours | Cyan, Magenta, Yellow, Black (CMYK) |
| Ink Cartridges | Epson UltraChrome XD2 (110ml and 350ml capacities) |
| Includes Ink/Toner Consumables | Yes |
| Ink/Toner Models Included | Set of 110ml UltraChrome XD2 ink cartridges and 1 x Maintenance Tank |
Power & Environment
| Power Supply | AC 100 - 240 V, 50/60 Hz |
|---|---|
| Power Consumption | 38W Operating, 13W Standby, 1.3W Sleep |
| Operational Temperature | 10°C to 35°C |
| Operational Humidity | 20 to 80% RH (non-condensing) |
| Operating Noise | 50 dB(A) |
Warranty
| Standard Warranty | 1 Year On-Site Warranty |
|---|
