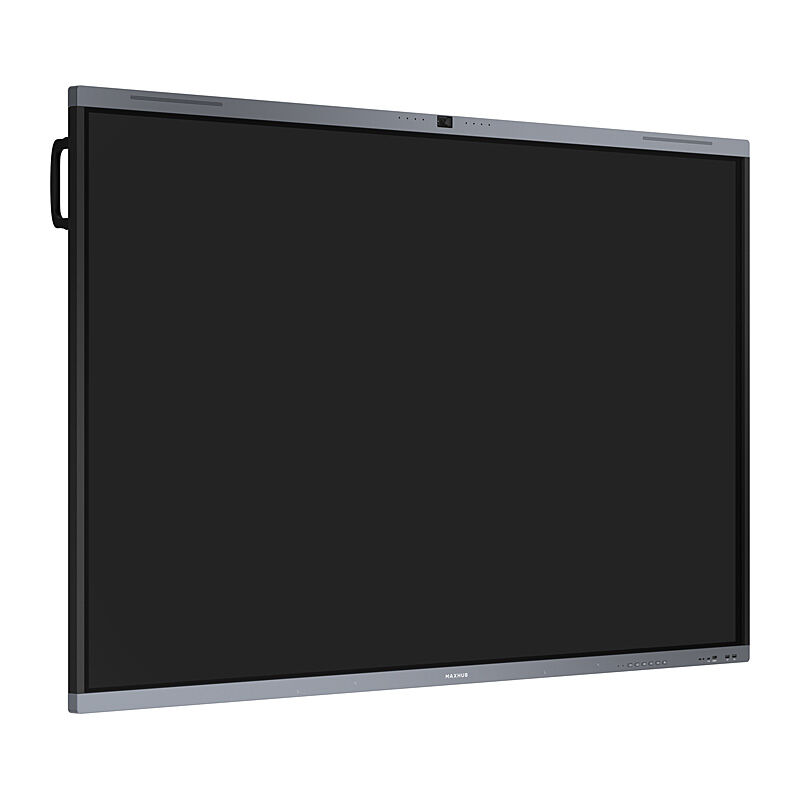

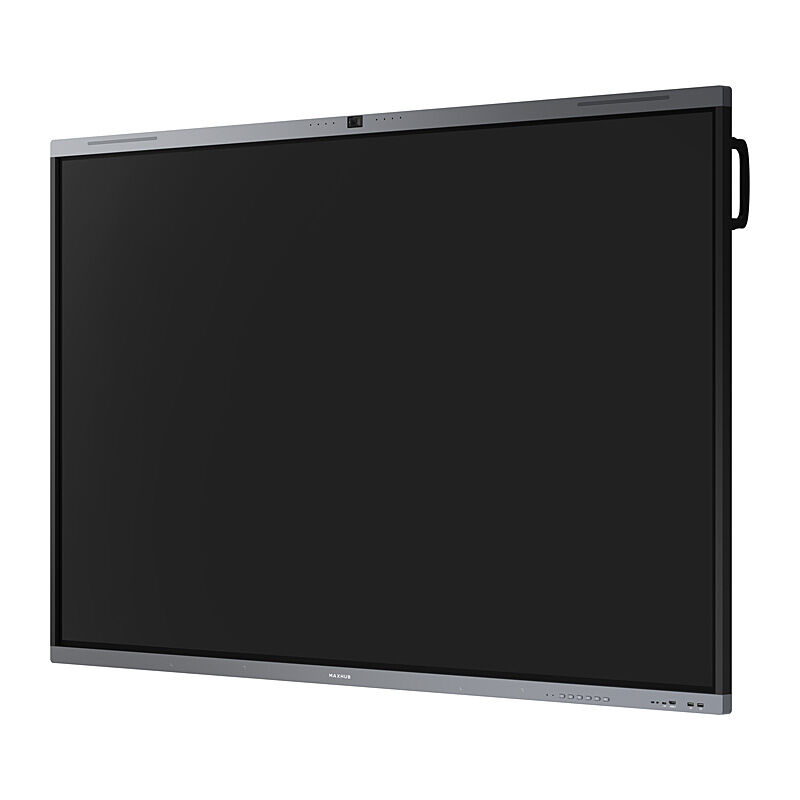

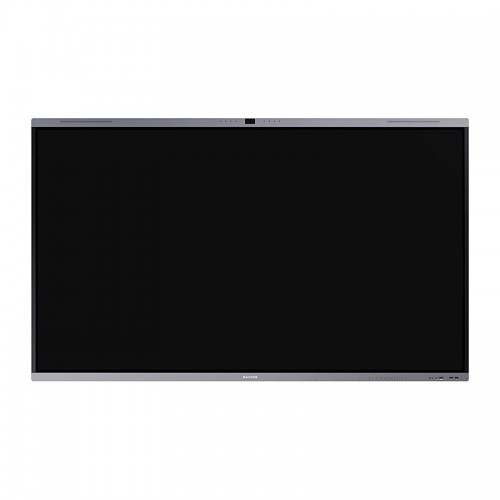

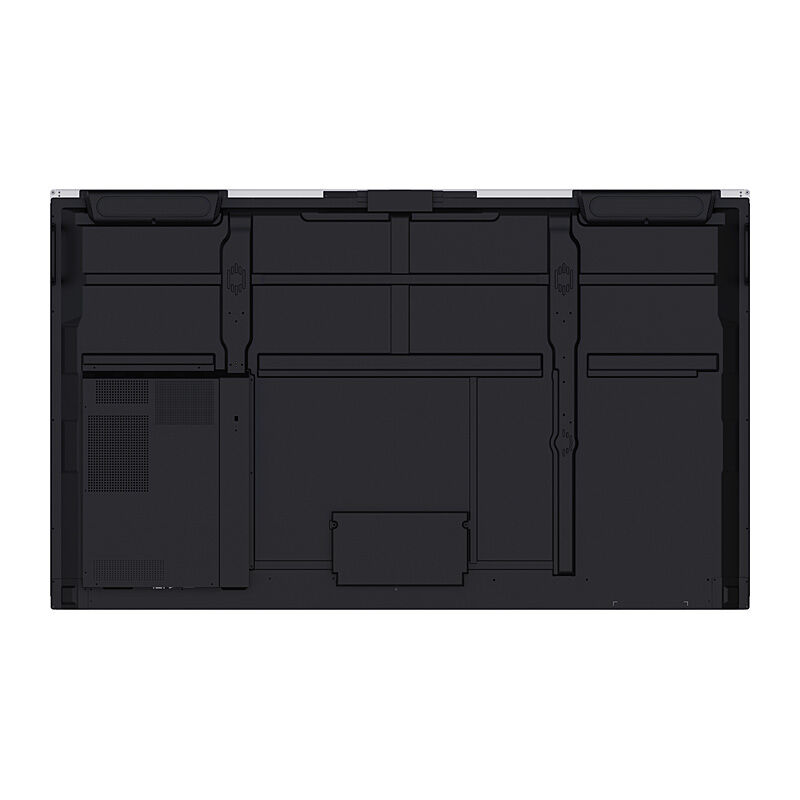

MAXHUB U series U7540 75in

Features

Prominent Display – 4K display, 10 bit color, high color accuracy
Classroom Care – Hardware-grade eye care, TÜV Low Blue Light and Flicker Free certification
SkyWave Sound System – 2.2 channel speaker, 2×12W + 2×25W maximum
Advanced Security System – Powered by Android 15 with Google EDLA certification
Peak Performance – Octa-core CPU, independent NPU, 16GB RAM, 256GB ROM
Convenient Connectivity – Full-function USB-C integrating 100W PD, video, audio, touch, and internet access features
Precious Touch – MAXHUB Think&Ink Technology, 50 touch points, ±0.5 mm touch accuracy
Comprehensive Software Suite – Versatile applications for education and collaboration

Specifications

Display

Model U7540
Diagonal Size (inch) 75
Display Area 1650.24 (H) 928.26 (V) mm
Aspect Ratio 16:9
Resolution 3840 (H) 2160 (V)
Viewing Angle 178° (H/V)
Screen Level A-Level
Panel Brightness 500 nits (max.)
Contrast Ratio 5,000:1 (typ.) 50,000:1 (dynamic)
Color Depth 1.07B (10bit)
Color Gamut (typ.) 98% sRGB
Color Accuracy ?E?1
Glass Zero parallax 3mm thickness 9H tempered
Surface Technology Non-glare, 25% haze Etched-AG Technology
Sensor Ambient light sensor Ambient color temperature sensor
Eyes Care TV Flicker Free TV Low Blue Light
Refresh Rate 60Hz
Response Time 6.5ms
Backlight Unit DLED
Backlight Life (typ.) ? 60,000 Hours

Touch System

Touch Technology Infrared recognition
Touch Point 50 Points touch
Object Recognition Range 1.5 mm
Accuracy ± 0.5 mm
Response Time ? 2.5 ms
Writing Height ? 1 mm
MAXHUB Think&Ink Direct Annotation / Palm Rejection / Sharp Erase / Erase and Write Simultaneously / Multi-level Object Recognition / Single Pen Dual Color
System (Touch Return) Windows1/Windows0/Windows/Windows/ Android/Linux/Mac OS X/Chrome

Connectivity

Input HDMI IN 4 Up to 4K@60Hz, HDCP 1.4&2.2&2.3, CEC, ARC (HDMI 1)
USB 2.0 1 For system upgrades
USB 3.0 4 Front2 + Rear2
Touch 2 3.02
USB Type-C 2 Video and audio transmission, touch, charging, LAN network sharing. Front: up to 65W PD; Rear: up to 100W PD
DP IN 1 4K@30Hz, HDCP 1.4&2.2&2.3
AUDIO IN 1 3.5mm jack
RS232 1 Baud rate 9600
RJ45 IN 1 10M/100M/1000Mbps
TF Card Port 1 Expandable up to 1TB
Output HDMI OUT 1 Up to 4K@60Hz
AUDIO OUT 1 3.5mm jack
USB Type-C 1 Type-C OUT
SPDIF 1 PCM output format
RJ45 OUT 1 10M/100M/1000Mbps
OPS Slot Module slot 1
Wi-Fi Module Slot Module slot 1 Wi-Fi Module (SI07B)
Wi-Fi 6 supported 802.11ac/b/g/n/a/ax, 2.4GHz/5GHz
Bluetooth 5.2

Built-in System

Operating System Android 15.0
Certification Google EDLA certification
RAM 16 GB
ROM 256 GB
SoC Process 8 nm
CPU A764+A554 Octa-core, 2.4GHz
GPU Mali-G610 MP4
NPU 6 TOPS

Camera

Quantity 1
Resolution 50MP
FOV 115° DFOV, 101° HFOV, 85° VFOV
Feature Manual Mode Auto Framing Speaker Tracking Person Counting Random Election

Audio

Audio System SkyWave Sound System
Sound Channel 2.2
Speaker Power 28W+218W (output) 212W+225W (maximum)
Sound Pressure Level 88 dB (1W, 1m)
Microphone Quantity 8-mic array
Pick-up Angle 180°
Pick-up Range 0~12 m
Feature Intelligent Audio Fence AI Spatial Sound AEC (Auto Echo Cancellation) ANC (AI Noise Cancellation) AGC (Auto Gain Control)

Power

Power Supply AC 100~240V 50/60Hz
Power Consumption (standby) ? 0.5W
Power Consumption (typ.) 80W
Power Saving Energy Star Certification

Physical Specification

Dimension (LHD) 1709.4 1034 97 mm
Shipping Dimension (LHD) 1863 1148 185 mm
Thickness of Machine and Wall Mount 122 mm
Wall-hanging Screw M756 mm
VESA No
Net Weight 40.6 kg
Gross Weight 53.5 kg

Environment

Operating Temperature 0°C~40°C
Storage Temperature -20°C~60°C
Operating Humidity 10%~90%RH
Storage Humidity 10%~90%RH
Altitude Below 5000 meters
Dust Resistance IP5X-rated

Accessories

Power Cord 3 m 1
HDMI Cable 3 m 1
Remote Control 1
Stylus SW13F 2
Display Bracket 2
Wall Mount Bracket WIB9060K 1
Wi-Fi Module SI07B 1

Optional Module

USB Camera UC W31
PTZ Camera UC P30
Video Bar UC S07
OPS Module OPS62A/OPS72A
Smart Pen SP30B
Sensor Box WL10C, WL20
Mobile Stand ST33M, ST23B, EST09

Software System

OS MAXHUB EDU OS V4
Whiteboard Tool MAXHUB Class Pro
Screen Sharing MAXHUB Connect
Device Management MAXHUB Pivot
Google Apps Google Play, Google Drive, Google Meet, Google map, YouTube, etc.
Other Apps Browser, Cloud Drive, Note, Palette, etc.
