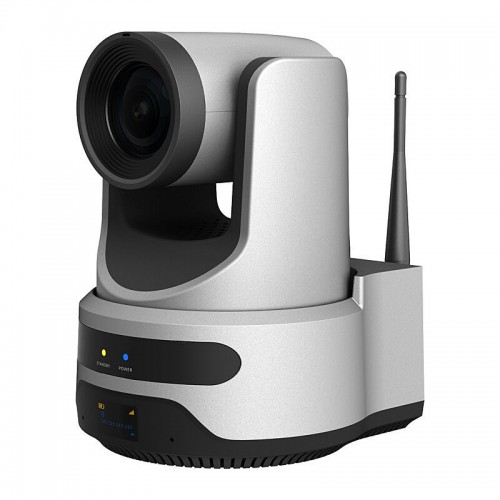

MAXHUB Mobile Capture PTZ Camera - EP50
MAXHUB Mobile Capture PTZ Camera - EP50
Features
- 40x Hybrid Zoom – Capture every detail clearly, even from a distance
- Long-lasting Battery Life – Designed for extended recording sessions
- Built-in Microphone – Integrated array microphone delivers clear, crisp audio within a 5 metre range
- Intelligent Presenter Tracking – Automatically follows the speaker to keep them in frame; simply click to select your target
Specifications
Camera
- Sensor Type: 1/2.8 inch, CMOS, 8.42 million pixels
- Scanning Method: Progressive
- Lens Focal Length: f = 6.25 mm ~ 125 mm, F1.58 ~ F3.95
- Auto Focus: Supported
- Zoom: 40x hybrid zoom, 20x optical zoom
- Minimum Illumination: 0.5 Lux @ (F1.8, AGC ON)
- Electronic Shutter: 1/30s ~ 1/10000s
- White Balance: Auto, indoor, outdoor, one-touch, manual, specified color temperature
- Digital Noise Reduction: 2D, 3D
- Signal to Noise Ratio: ≥ 55dB
- FOV: HFOV 60° ~ 3.5°, VFOV 35.7° ~ 2.0°
- Rotation Range: Horizontal ±170°, Vertical -30° ~ +90°
- Rotation Speed Range: Horizontal 2.7° ~ 35.7°/s, Vertical 2.7° ~ 31.5°/s
- Horizontal & Vertical Flip: Supported
- Features: Auto ICR, Backlight Compensation, Low Light Mode, Image Freeze
- Preset Positions: 255, Accuracy 0.1°
USB Features
- Supported Operating Systems: Windows7/8/10/11, Mac OS X, Linux, Android
- Color Space: YUY2 / MJPEG / H.264
- Video Format: YUY2 (2560×1440@30fps), MJPEG (3840×2160@30fps), H.264 AVC (3840×2160@30fps)
- USB Audio: Supported
- USB Video Communication Protocol: UVC 1.1
- UVC PTZ Control: Supported
Network Features
- Video Coding Standard: H.264 / H.265 / MJPEG
- Video Stream: First, Second Stream
- First Stream Resolution: 3840×2160, 1920×1080, 1280×720, 1024×576, 960×540, 640×480, 640×360
- Second Stream Resolution: 1920×1080, 1280×720, 1024×576, 720×576, 720×480, 720×408, 640×360, 480×270, 320×240, 320×180
- Video Bitrate: 32 Kbps ~ 102400 Kbps
- Bitrate Control: Variable Bitrate, Fixed Bitrate
- Frame Rate: 50Hz: 1–25 fps, 60Hz: 1–30 fps
- Audio Compression Standard: AAC
- Audio Bitrate: 96 Kbps, 128 Kbps, 256 Kbps
- Protocol Support: TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, UDP, etc.
I/O Port
- USB Type-C × 1
- USB 3.0
- HDMI Out × 1 (HDMI 1.4b)
- RJ45 × 1 — 10M/100M adaptive ethernet port
- Line In × 1 — 3.5 mm audio interface
- RS485 × 1 — 3-pin Phoenix connector, maximum distance: 1200 meters, VISCA/Pelco-D/Pelco-P protocol
- Power Port × 1 — JEITA type (DC In 12V)
- Button × 2 — Reset button, Power button
Electrical Parameters
- Input Voltage: DC 12V
- Input Current: 3.0A
- Battery: 9480 mAH (typ.)
- Power Consumption: 12W (max)
Physical Parameters
- Product Dimension (W × D × H): 295 × 245 × 254 mm
- Shipping Dimension (L × W × H):
- 1 pc: 295 × 245 × 254 mm
- 4 pcs: 615 × 515 × 273 mm
- Net Weight: 1.9 Kg
- Gross Weight:
- 1 pc: 2.94 Kg
- 4 pcs: 13.24 Kg
Accessories
- Power Adapter × 1
- Power Cable × 1
- Quick Start Guide × 1
Environmental Conditions
- Operating Temperature: -10°C ~ 40°C
- Storage Temperature: -40°C ~ 60°C
- Operating Humidity: 10% ~ 90% RH
- Storage Humidity: 10% ~ 90% RH
- Altitude: Below 5000 meters
