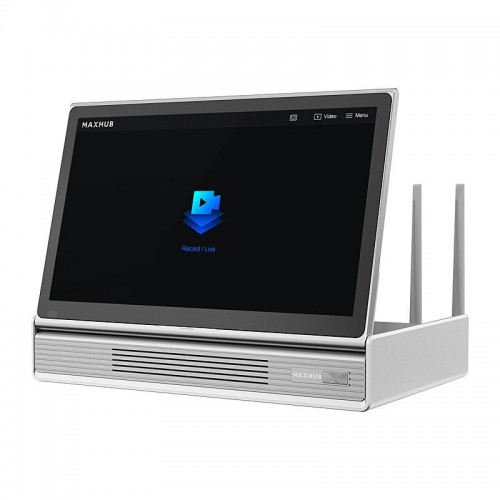

MAXHUB Mobile Capture Host
MAXHUB Mobile Capture Host [CSP50]
Features
- Intuitive Touch Control: Manage your cameras and switch scenes with ease. Responsive touchscreen interface for greater operational efficiency
- Wireless Deployment: Flexible setup without complex cabling
- Extended Battery Endurance: Enjoy up to 6 hours of continuous use. Automatic overheat protection for peace of mind during long sessions
- High-Reliability Storage: Featuring durable SSD storage. Withstands frequent movement and rough handling to keep your data safe and sound
Specifications
Display
- Operating System: Linux
- Diagonal Size (inch): 15.6
- Brightness: 250 nits
- Resolution: 1920 1080
- Backlight Unit: ELED
- Color Gamut: 72% NTSC
- Viewing Angle: > 170°
- Refresh Rate: 60 Hz
- Mean Time Between Failures (MTBF): ? 250,000 Hours
- Glass: 7H Tempered
- Screen Type: Capacitive touch screen
- Touch Point: 10 Points touch
System
- CPU: A764 + A554
- GPU: Mali-G610 MP4
- NPU: 6 TOPs
- RAM: 8GB
- Storage: 512GB SSD
Video I/O Port
- Video Recording Resolution: 4K@30fps, 1080p, 720p, VGA, QVGA
- Video Recording Frame Rate: 60fps/ 30fps/ 25fps
- Video Recording Format: MP4
- Multi-Channel Recording: Up to 7 channels
- Live Streaming Channel: Up to 3 RTMP channels, 1080p
- Live Streaming Resolution: 1080p, 720p, VGA, QVGA
Ports
- DC In 1
- RJ45 5 (one for Internet, one for Mic in, three for PoE)
- HDMI Out 3
- HDMI In (HDMI 1.4) 2
- USB-A 3.0 2
- USB Type-C 1
- RS422 1
- Mic In 1
- Line In 1
- Line Out 2
- Power Button 1
Wireless Connection
- Frequency: 2.4GHz, 5GHz, 5.8GHz
- Wi-Fi: 802.11ac/b/g/n/a/ax (Wi-Fi 6 supported)
- Bluetooth: 5.2
Electrical Parameters
- Power Adapter: 100-240~50/60HZ 2.0A Max
- Power Supply: DC 24V 4.0A
- Power Consumption (Max): 60W
- Power Consumption (Standby): 0.5W
Physical Parameters
- Dimension (Raised Position, L W D): 385.2 255 290.8 mm
- Dimension (Lowered Position, L W D): 385.2 255 70 mm
- Shipping Dimension (W H D): 487 163 358 mm
- Net Weight: 6.5 Kg
- Gross Weight: 8.3 Kg
Environmental Conditions
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -20°C ~ 60°C
- Operating Humidity: 10% ~ 90% RH
- Storage Humidity: 10% ~ 90% RH
- Altitude: Below 5000 meters
Accessories
- Power Adapter 1
- Power Cable 1
- Phoenix Connector 2
- Antenna Adapter Cable 1
- External Antenna 5
