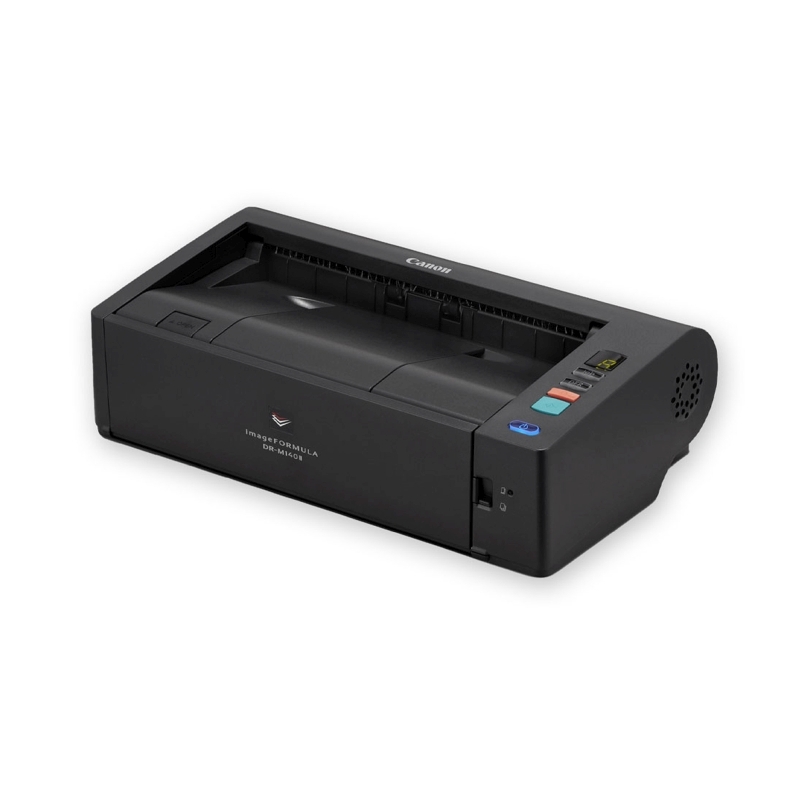

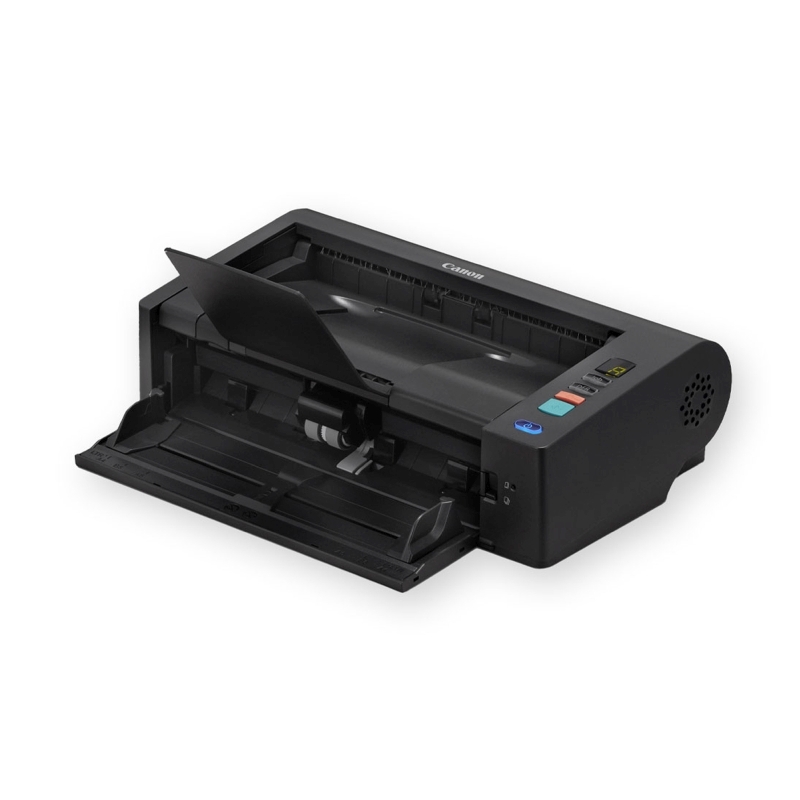

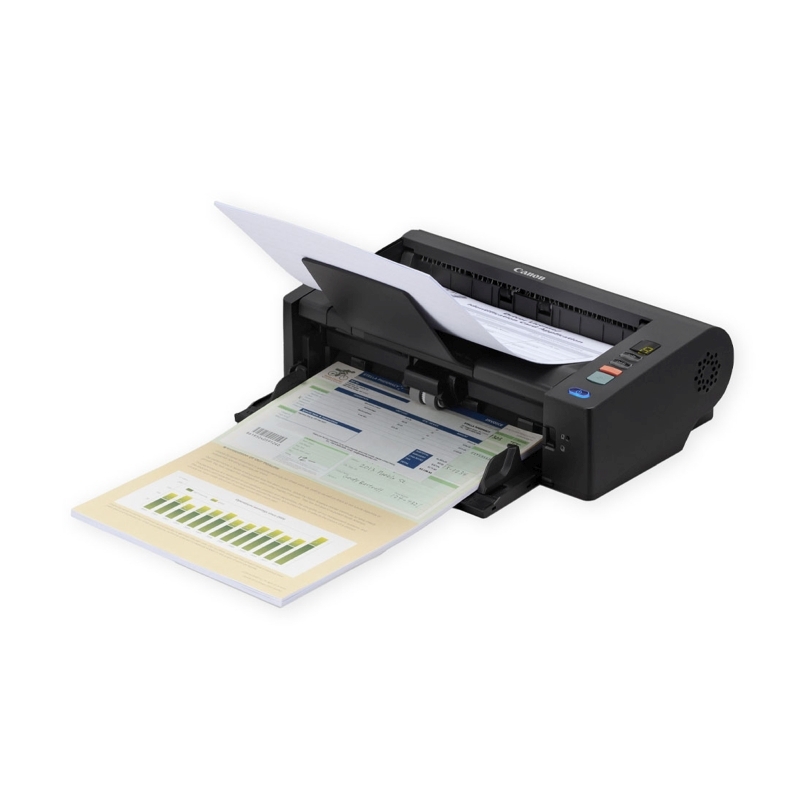

Canon imageFORMULA DR-M140 II Desktop Sheetfed Scanner

Canon imageFORMULA DR-M140 II Desktop Sheetfed Scanner

Brand: Canon

Description

The Canon imageFORMULA DR-M140 II is a compact desktop sheetfed scanner engineered for high-volume document workflows. Delivering fast single-pass duplex scanning at speeds up to 40 ppm and 80 ipm in both colour and monochrome, this versatile scanner easily copes with demanding office tasks. Designed for corporate offices, financial institutions, and legal departments, it provides reliable document feeding for mixed media types, ranging from thin paper to embossed plastic cards.

Delivers high-speed one-pass duplex scanning at 40 ppm / 80 ipm in colour, greyscale, and black and white.
Equipped with an 80-sheet Automatic Document Feeder (ADF) to handle large document batches efficiently.
Features selectable paper paths: a space-saving U-turn path for standard documents and a straight path for thick media, business cards, and plastic cards.
Includes Ultrasonic Double Feed Detection and Rapid Recovery to prevent misfeeds and ensure every page is captured.
Comes bundled with CaptureOnTouch software for easy job pre-setting and direct panel operations.
Supports daily duty volumes of up to 6,000 scans for dependable high-capacity productivity.
Offers convenient front-panel maintenance access for replacing exchange rollers effortlessly.

For manufacturer information, see the Canon imageFORMULA DR-M140 II on Canon Australia.

Orders for Canon imageFORMULA DR-M140 II desktop sheetfed scanners are fulfilled through distribution centres in Melbourne, Sydney, Brisbane, Adelaide and Perth for delivery across Australia.

Disclaimer: We work hard to keep product details accurate and current, though occasional errors or omissions may occur. Specifications and features can also change without notice. Before purchasing or using a product, we encourage you to check the packaging or product listing, especially for materials or compatibility, to ensure it meets your needs.

Basic Specifications

Brand	Canon
Model	imageFORMULA DR-M140 II
Scanner Type	Desktop Sheetfed Scanner
Scanning Sensor	CMOS CIS 1 Line Sensor
Light Source	RGB LED
Feeder Capacity	80 sheets (10 mm total thickness or less)
Daily Duty Cycle	Maximum 6,000 scans per day

Scanning

Scan Speed (Simplex)	40 ppm (B&W, Greyscale, Colour at 200dpi / 300dpi)
Scan Speed (Duplex)	80 ipm (B&W, Greyscale, Colour at 200dpi / 300dpi)
Scanning Side	Simplex / Duplex
Optical Resolution	600 x 600 dpi
Output Resolution	100 dpi, 150 dpi, 200 dpi, 240 dpi, 300 dpi, 400 dpi, 600 dpi, 1200 dpi
Scanning Modes	Black and White, Error Diffusion, 256-level Greyscale, Active Threshold, Advanced Text Enhancement, Advanced Text Enhancement II, 24-bit Colour

Document Handling

Document Size (Width)	50.8 mm to 216 mm
Document Size (Length)	54 mm to 356 mm (Long paper mode up to 3,000 mm)
Plain Paper Thickness (U-turn Path)	27 to 128 g/m² (0.04 mm to 0.15 mm)
Plain Paper Thickness (Straight Path)	27 to 255 g/m² (0.04 mm to 0.30 mm)
Business Card Support	Up to 380 g/m² (0.45 mm or smaller, straight path, placed vertically)
Plastic Card Support	0.76 mm or less (up to 1.4 mm for embossed cards, straight path, placed vertically)

Connectivity & Interfaces

Interface	Hi-Speed USB 2.0

Software & Features

Bundled Software	CaptureOnTouch, Barcode Module, 2D Code Module
Other Functions	Automatic Colour Detection, Ultrasonic Double Feed Detection, Folio Scanning, Double Feed Release, Rapid Recovery

Power & Environment

Power Requirements	AC 100 to 240 V (50/60Hz)
Power Consumption	Scanning: Max 24.5 W; Sleep Mode: Max 1.6 W; Power Off: Max 0.1 W
Operating Temperature	10°C to 32.5°C
Operating Humidity	20% to 80% RH

Dimensions & Maintenance

External Dimensions (WxDxH)	313 mm x 181 mm x 93 mm (with trays closed)
Weight	Approximately 2.6 kg (without AC adapter)
Consumables	Exchange Roller Kit
Optional Accessories	Canon Flatbed Scanner Unit
