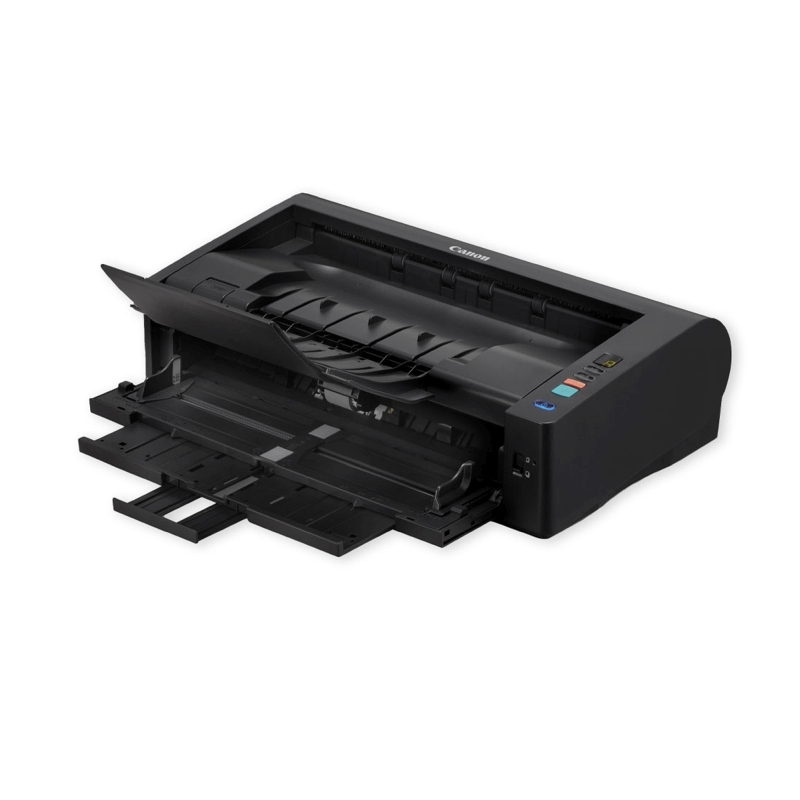

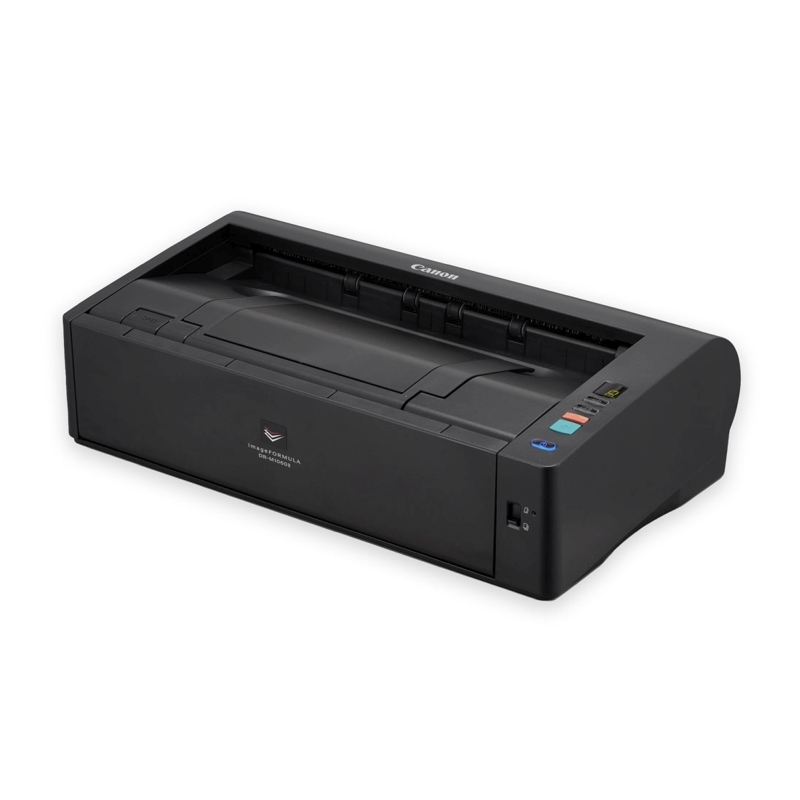

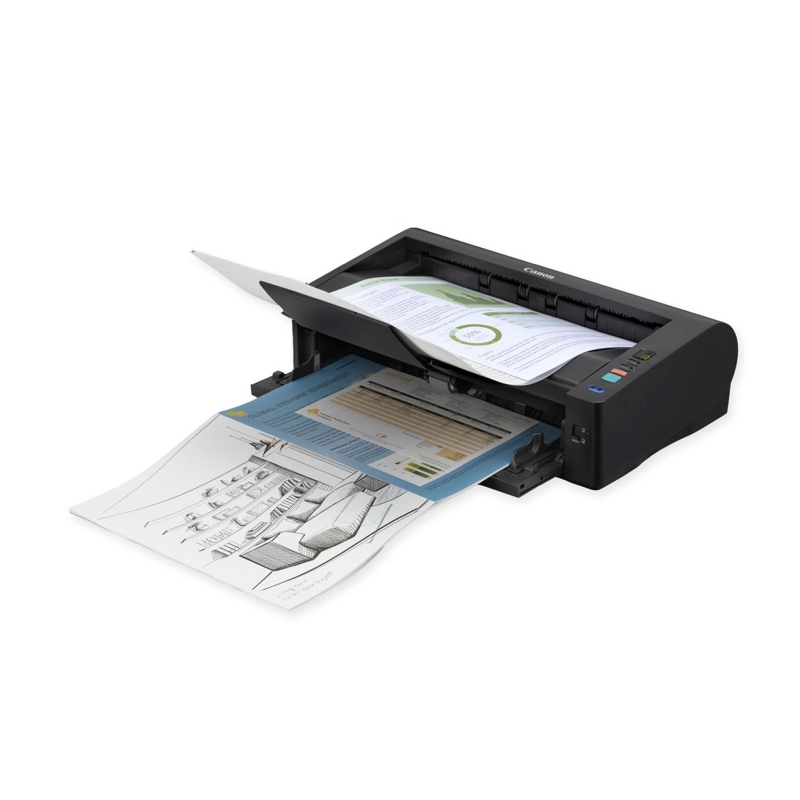

Canon imageFORMULA DR-M1060II Desktop Sheetfed Scanner
Description
The Canon imageFORMULA DR-M1060II is a high-speed A3 desktop sheetfed scanner engineered for busy corporate office departments and branch environments requiring high-volume document capture in a space-saving footprint. It delivers fast scanning speeds up to 60 ppm / 120 ipm with automatic duplex support and a robust 80-sheet Automatic Document Feeder (ADF).
- Fast A4 and A3 document scanning at speeds up to 60 ppm (simplex) and 120 ipm (duplex).
- Versatile paper path design featuring a space-saving U-turn path for front feed/exit operation and a straight path for plastic cards and heavy media up to 380 g/m².
- 80-sheet Automatic Document Feeder (ADF) built to handle daily workloads of up to 7,500 scans.
- Advanced paper feed protection with ultrasonic double-feed detection and a Double Feed Release (DFR) button for quick error recovery.
- Bundled with CaptureOnTouch software for easy setup of up to nine registered routine scan tasks.
- Hi-Speed USB 2.0 interface with optional flatbed scanner unit attachments for bound books and fragile documents.
For manufacturer information, see the Canon imageFORMULA DR-M1060 II on Canon Australia.
For customers across Australia, Canon imageFORMULA DR-M1060II scanner orders are fulfilled through distribution centres in Melbourne, Sydney, Brisbane, Adelaide and Perth.
Disclaimer: We work hard to keep product details accurate and current, though occasional errors or omissions may occur. Specifications and features can also change without notice. Before purchasing or using a product, we encourage you to check the packaging or product listing, especially for materials or compatibility, to ensure it meets your needs.
Basic Specifications
| Brand | Canon |
|---|---|
| Model | imageFORMULA DR-M1060II |
| Scanner Type | Desktop Sheetfed Scanner |
| Scanning Sensor | CMOS CIS 1 Line Sensor |
| Light Source | RGB LED |
| Scanning Side | Simplex / Duplex |
Scanning Specifications
| Optical Resolution | 600 dpi |
|---|---|
| Scan Speed (A4 Greyscale/Mono) | 200/300 dpi: 60 ppm (Simplex), 120 ipm (Duplex) |
| Scan Speed (A4 Colour) | 200 dpi: 60 ppm (Simplex), 120 ipm (Duplex) | 300 dpi: 40 ppm (Simplex), 80 ipm (Duplex) |
| Scanning Modes | Black and White, Error Diffusion, 256-level Greyscale, Active Threshold, Advanced Text Enhancement, Advanced Text Enhancement II, 24-bit Colour |
| Suggested Daily Duty Cycle | Maximum 7,500 scans per day |
Document Handling
| ADF Capacity | 80 sheets (Total thickness: 10 mm or less) |
|---|---|
| Paper Feeding Paths | U-turn path (front feed and exit) and Straight path |
| Document Size (Plain Paper) | Width: 50.8 mm to 300 mm | Length: 70 mm to 356 mm (Up to 3,000 mm in Long Document Mode) |
| Document Thickness (U-Turn Path) | Page separation: 27 to 128 g/m² (0.04 to 0.15 mm) | Non-separation: 27 to 164 g/m² (0.04 to 0.2 mm) |
| Document Thickness (Straight Path) | 27 to 255 g/m² (0.04 to 0.3 mm) | Business Card: 128 to 380 g/m² (0.15 to 0.45 mm) | Cards: up to 0.76 mm (1.4 mm embossed) |
| Error / Double Feed Detection | Ultrasonic Double Feed Detection, Double Feed Release (DFR) Button |
Connectivity & Software
| Interface | Hi-Speed USB 2.0 |
|---|---|
| Bundled Software | CaptureOnTouch, CaptureOnTouch Pro, ISIS/TWAIN Drivers, Barcode / 2D Code Module |
| Supported Operating Systems | Windows |
| Optional Accessories | A4 Flatbed Scanner Unit, A3 Flatbed Scanner Unit, Exchange Roller Kit |
Power & Operating Environment
| Power Supply | DC24V 1.3A (via AC Adapter) |
|---|---|
| Power Consumption | Scanning: 32.5 W or less | Sleep mode: 1.9 W or less | Power OFF: 0.1 W or less |
| Operating Temperature | 10°C to 32.5°C |
| Operating Humidity | 20% to 80% RH |
Dimensions & Weight
| Dimensions (Tray Closed) | 424 x 246 x 120 mm |
|---|---|
| Dimensions (Tray Open) | 424 x 440 x 210 mm |
| Weight | Approximately 6.1 kg (without AC adapter) |
Warranty
| Warranty | 12 Month Limited Warranty |
|---|
